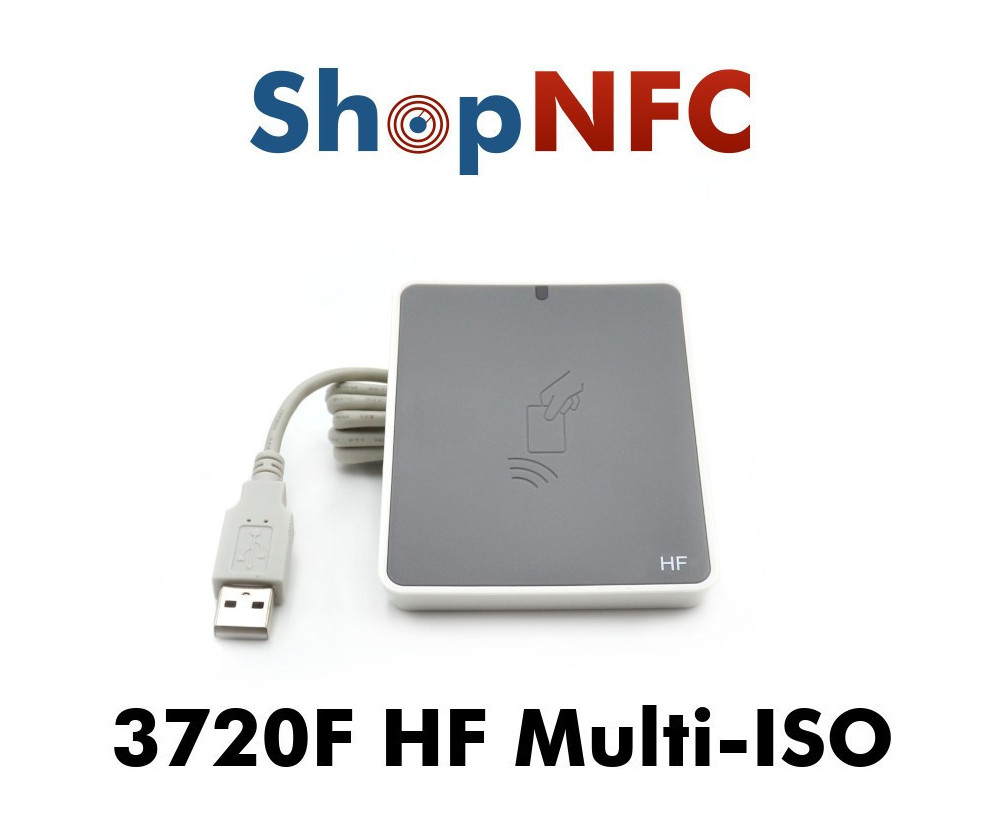

uTrust 3720F HF Multi-ISO NFC Reader/Writer

uTrust 3720F HF Multi-ISO NFC Reader/Writer

€89.00
Reference LS-UT3720HF

Identiv’s uTrust 3720 F Multi-ISO Smart Card Reader integrates multi-ISO (ISO14443 and ISO15693) contactless interface capabilities to support a wide variety of identification applications.

Quantity
In Stock

Did you find this product at a better price? Contact us

Volume discounts
Quantity Unit discount Unit price
10 10.1% €80.01
20 17.17% €73.72

Identiv’s Multi-ISO High Frequency Reader offers a cost-efficient solution combining all major high-frequency (HF) standards in one device, including ISO 14443 and 15693.

The Identiv driver platform and Windows® Plug-and-Play driver support allow seamless integration into any end-user environment with very little or no administration. uTrust 3720 F can even be used with Android-based solutions.

Identiv-powered SmartOSTM upgradeable firmware makes uTrust 3720 F a secure investment.

Driver, Tools and Utilities

Click here to access configurator tool and many other useful utilities for developers. Several developer tools and sample codes are available in C++, Visual Basic, Visual C, Delphi and more.

Technical Specifications

Supported Operating Systems

PC/SC Specification Ver. 2.01.13 for:

  • Windows® 7/8/8.1/10 (32 and 64 bit)
  • Windows® Server 2008/2012/2016
  • macOS 10.6.x – 10.15.x
  • Linux 2.4.x, 2.6.x,3.x, 4.x, 5.x (32 and 64 Bit)
  • Android 4.0 and higher
Supported Standards
  • ISO14443 Type A and Type B
  • ISO 15693
  • MIFARE®
  • NTAG®
  • MIFARE® Classic 1K and 4K
  • MIFARE® DESFire® EV1 and EV2
  • MIFARE® Ultralight, Ultralight C
  • MIFARE Plus®
  • ICODE®
  • FeLiCA Lite and Secure
  • Calypso
Data transfer Rate (to Transponder)

ISO 14443 106 Kbps, 212 Kbps, 424 Kbps, and 848 Kbps, depending on NFC IC

ISO 15693 : 26/52 kbps, depending on card IC
Approvals RED 2014/53/EU, FCC part 15 Subpart C, RoHS3, REACH, and WEEE
Operating Frequency 13.56 Mhz
Read Distance up to 2,5 cm
Operating Temperature -20º to 70ºC
Storage Temperature -25 to 85ºC
Dimensions 91 x 75 x 12 mm (3.583 x 2.953 x 0.472 in)
Weight 85 gm
Indicators Bi-color green and red LEDs for power and activity
LS-UT3720HF

Data sheet

NFC Standard
ISO/IEC 14443-A, 15693
Commodity code (HS)
84719000
Country of origin
Singapore
New

Download

uTrust 3720F Multi-ISO

Download (169.79KB)

Identiv Readers Compatibility

Compatibility table of Readers with HF and LF chips

Download (672.37KB)
