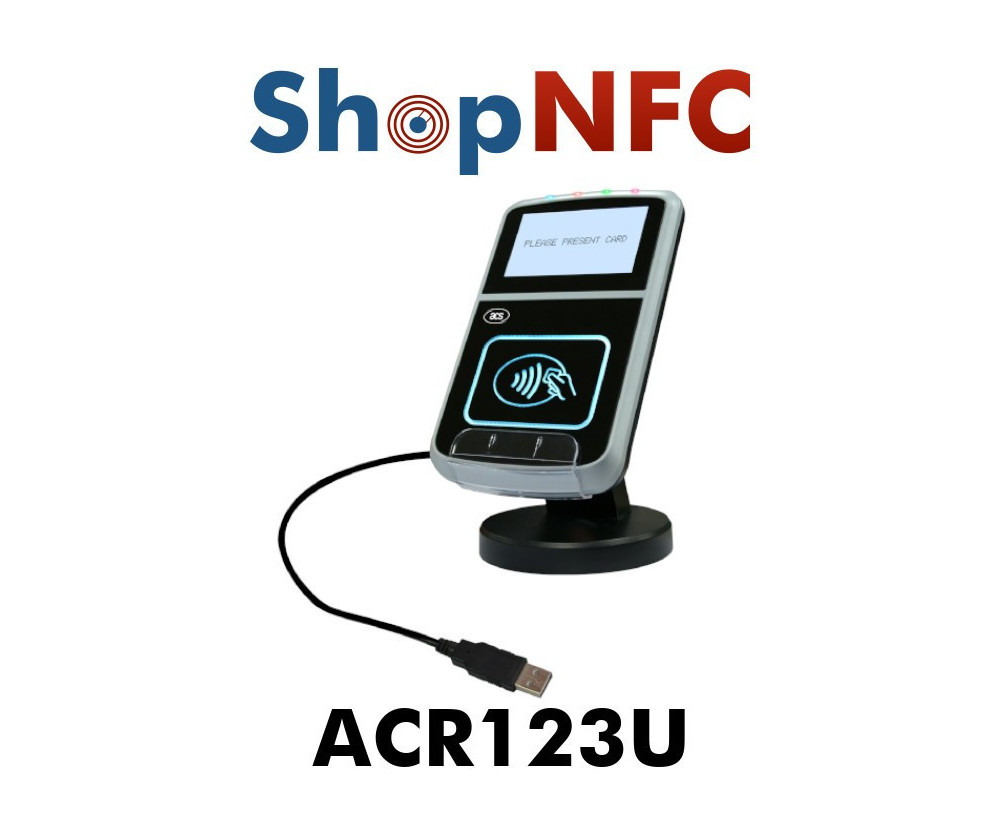

ACR123U - NFC Reader for Contactless Payments

159.00 €
Reference LS-ACR123U

The NFC ACR123U reader can be integrated with POS terminals and cash registers to offer customers a contactless payment system.

It supports MasterCard PayPass, Visa payWave, and AMEX ExpressPay cards. ACR123 is also Apple Pay‒ready.


Quantity


Shipping in 5 days

Do you need additional services? Click here

Did you find this product at a better price? Contact us



NFC_product-showcase

Technical specifications

  • ARM 32-bit CortexTM-M3 Processor
  • USB interface for Data Communication and power supply
  • Read/Write speed: up to 848 kbps
  • Operating distance: up to 50 mm (depending on tag type)
  • Support: ISO 14443 Part 4 Type A and B cards and MIFARE series
  • Built-in anti-collision feature
  • 3 ISO 7816-compliant SAM slots

Built-in Peripherals

  • 16 alphanumeric characters x 8 lines Graphical LCD (128 x 64 pixels)
  • 4 user-controllable LEDs (Blue, Yellow, Green, and Red)
  • User-controllable tapping region backlight (Red, Green and Blue)
  • User-controllable speaker (Audio tone indication)

Dimensions

  • Main Body: 159.0 mm (L) x 100.0 mm (W) x 21.0 mm (H)
  • With Stand: 177.4 mm (L) x 100.0 mm (W) x 94.5 mm (H)

Weight

  • Main Body: 281.0 g
  • With Stand: 506.0 g

Please visit ACS website to download the drivers.

LS-ACR123U
New product

Data sheet

NFC Standard
ISO/IEC: 14443A/B

Download

ACR123U

Technical Specification

Download (142.78k)
