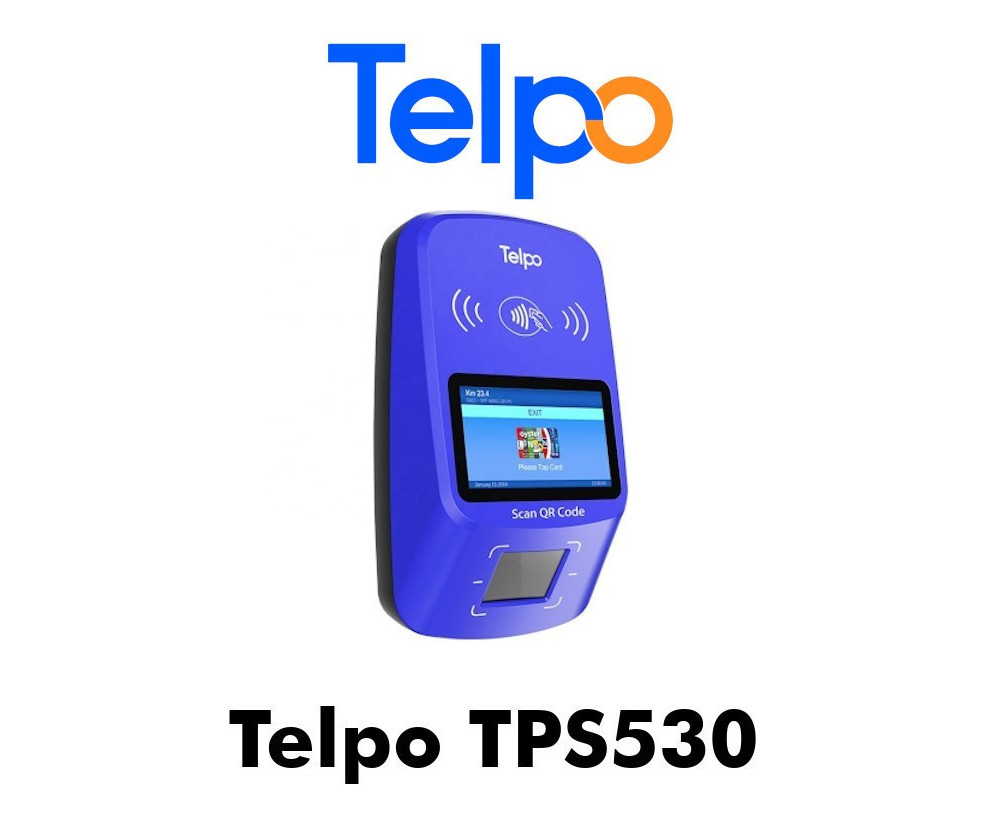

Telpo TPS530 - NFC Validator for transport

490.00 €
Reference LS-TPS530

Android device for the validation of the travel ticket, with contactless payment support. Equipped with NFC and barcode/QR scanner. With 4G, Wi-Fi and GPS.


Quantity


Less than 10 items left in stock

Did you find this product at a better price? Contact us



The Telpo TPS530 is an Android device for AFC (Automaric Fare Collection). Allows validation of the subscription or direct payment based on the set fares.

Supports barcode or QR tickets and contactless cards via NFC. Thanks to GPS, you can monitor your vehicle fleet and provide useful information to passengers.

Technical specifications

  • Processor: Quad-Core 1.1GHz or above
  • OS: Android 7.0 or above
  • Display: 5-inch, 1280x720
  • Contactless Smart Card Reader: ISO14443 Type A/B, Mifare, ISO18092 compliant, EMV Contactless L1
  • Operating Temperature: -20°C~50°C
  • Storage Temperature: -25°C~60°C
  • Supply Voltage: DC 9 V – 40 V
  • Dimensions: 285mm (L) x 168mm (W) x 95mm (H)

Connectivity

  • 4G / 3G
  • WCDMA
  • GPRS
  • Wifi
  • Bluetooth

Memory

  • 1GB DDR, 8GB eMMC

Interface

  • SIM x 2
  • SAMs x 2
  • RS232 x 1
  • RS485 x 1
  • USB-A x 1
  • Micro USB x 1
  • DC Charge x 1
LS-TPS530
New product

Data sheet

NFC Standard
ISO/IEC: 14443A/B, 18092

Download

Telpo TPS530

Datasheet of the Telpo TPS530 Ticket validator

Download (861.74k)
