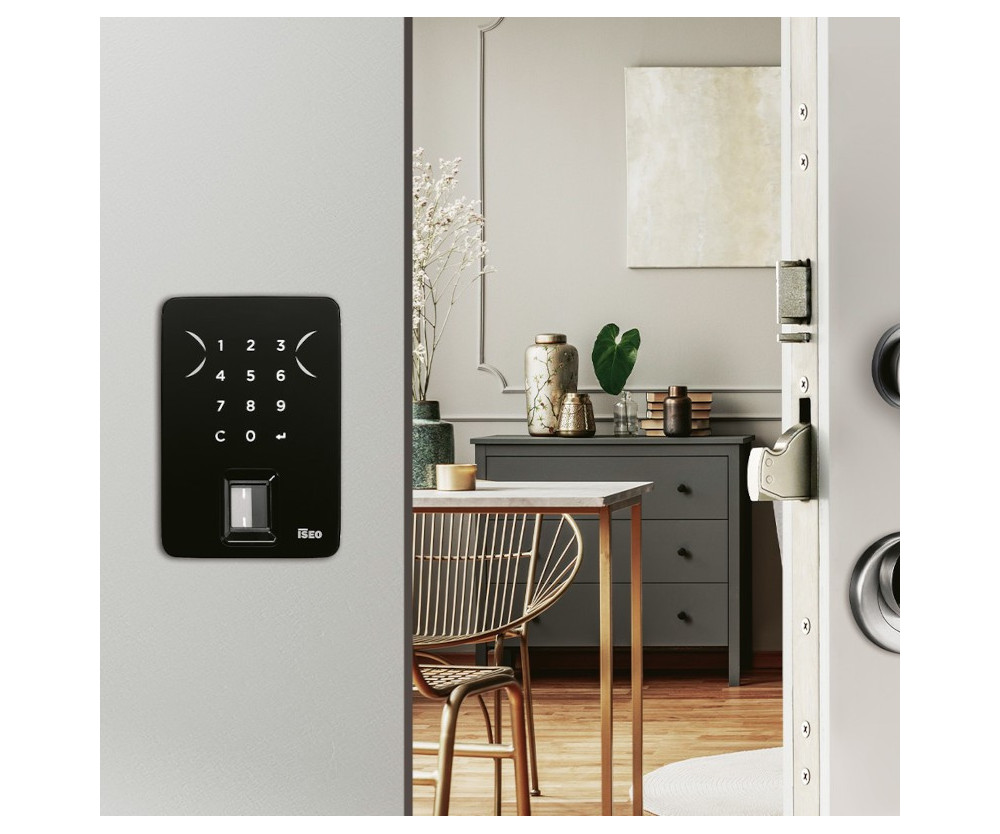

ISEO 1NCA Smart - NFC reader for opening a door

1NCA Smart Readers are an innovative line of multi-standard, wall-mounted and weatherproof readers, which are part of ISEO's Connected range. They were designed for the management of access to residential buildings and small commercial businesses.

These easy-to-install readers can manage internal doors but also external gates as they are IP66 certified: their installation is particularly recommended for doors, turnstiles, motorized bars, electronic gates, garages and sliding gates.

• Compatible with the ISEO Argo app, available for Android and iOS.
• Compatible with all MIFARE® and NTAG® chips and with any ID badge compatible with the ISO14443A/B standard.

Main characteristics

• Integrated NFC reader, compatible with ISO 14443 A/B standard
• Compatible with Bluetooth® 5.0
• Real Time clock and calendar
• NFC Master card included
• LEDs
• Acoustic signal (buzzer)
• Made in Italy

Versions available

• 1NCA Smart Cable Free Finger
• 1NCA Smart Cable Free Keyboard
• 1NCA Smart Cable Free RFID
• 1NCA Smart Mullion Keyboard Lockbus
• 1NCA Smart Mullion Keyboard Relay
• 1NCA Smart Mullion Lockbus
• 1NCA Smart Mullion Relay

Recommended contexts

• Housing
• Offices
• Commercial area

Communication interface

• RFID ISO14443B/Mifare ISO14443A
• Bluetooth Smart 5.0

Dimensions

• Height: 120mm
• Width: 82mm
• Thickness: 35mm

Compatibility

• The NFC sensor is compatible with all MIFARE® and NTAG® chips.

N.B - The AC power supply is not included.
