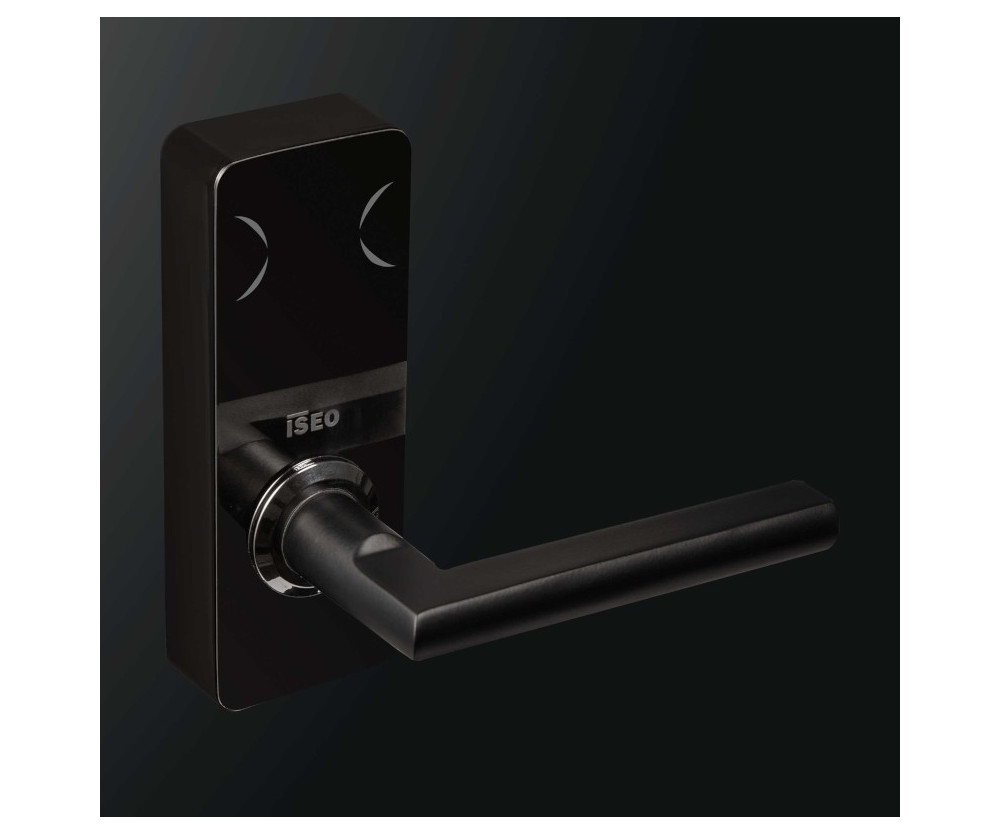

ISEO MA1A Smart - Door handle with NFC lock

Reference 00E40201555

Thanks to a width of only 56 mm, this handle can be easily applied to almost any type of door. It can be unlocked with any ISO 14443-A tag, or via Bluetooth®.

For more information, please contact us


Quantity


Did you find this product at a better price? Contact us

100% secure payments


The ISEO MA1A SMART handle plate can be installed on most new or existing doors. It has been designed to fit almost any type of door with a lock recess of at least 35mm or European cylinder.

The lock designed for hotels

Thanks to the internal battery (lasting 2 years), installation costs are reduced to a minimum. For the application, only 3 holes are required (1 for the lock and 2 for the fixing screws).

  • Compatible with the ISEO Argo app, available for Android and iOS.
  • Compatible with all MIFARE® and NTAG® chips, with any ID badge compatible with the ISO14443A/B standard.

Main characteristics

  • Integrated NFC reader, compatible with ISO 14443 A/B standard
  • Compatible with Bluetooth® 5.0
  • Wake up system with NFC, Bluetooth® and Real Time Clock
  • Compatible with mechanical lock with 35 mm backset
  • Internal battery lasting over 2 years or 20,000 openings
  • NFC Master card included
  • LEDs
  • Made in Italy

Possible finishes

  • Technopolymer

Dimensions

  • Plate width: 56 mm
  • Sheet length: 147 mm
  • Thickness: 24mm
  • Handle length: 115mm
  • Weight: 600g
  • The thickness of the cylinder must be chosen based on the size of the door. Please contact us during purchase.

Note

  • The NFC sensor is compatible with all MIFARE® and NTAG® chips.
00E40201555
New

Data sheet

NFC Standard
ISO/IEC: 14443A/B
