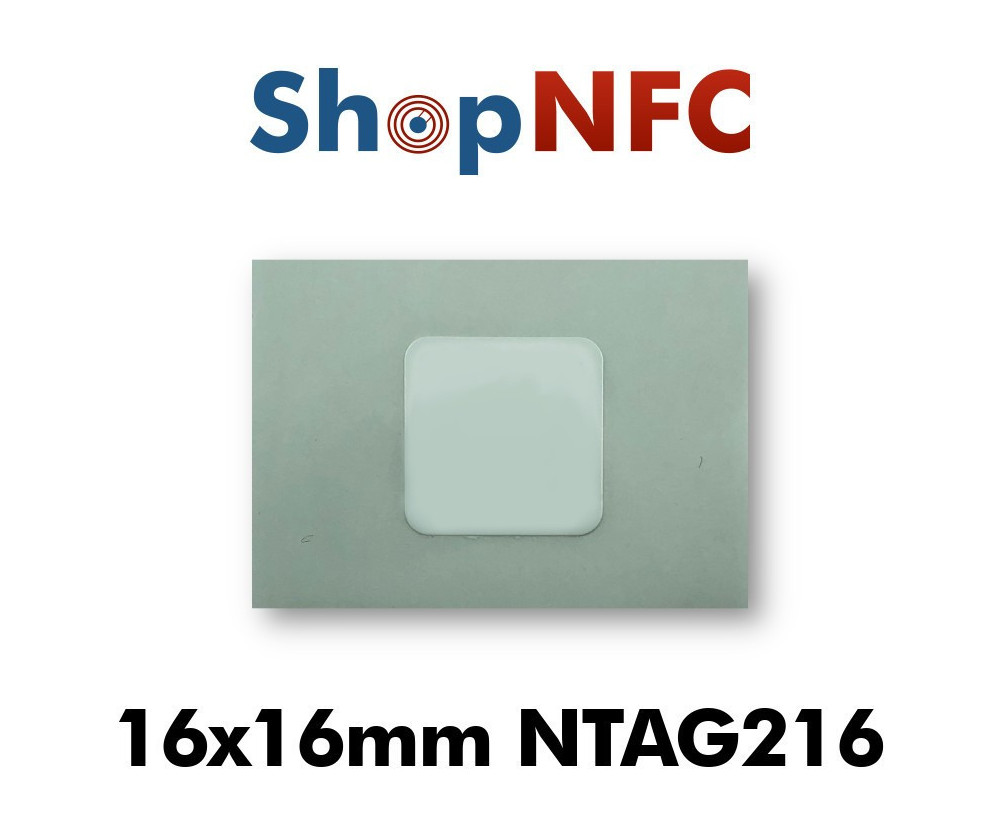

NFC Stickers, equipped with NXP NTAG216 NFC Chip

NTAG216 Stickers Technical Specifications

• Integrated Circuit (IC): NXP NTAG216
• Air interface protocol: ISO 14443 A
• Operation Frequency: 13.56 MHz
• Memory: 888  bytes
• Operating temperature:  from -25°C to 70°C / from -13°F to 158°F
• Storage temperature: from -55°C to 125°C / from -67°F to 257°F

Custom printing

These NFC Tags are white. We can print directly on this tag, in black and white or in full color.

A printing tolerance of about 1-2 mm should be considered. To achieve the best results, it is recommended to avoid:

• Designs printed to the edge (except from offset printing)
• Graphic elements such as frames
• Important elements very close to the edge

Black printing (1-2 days) is done with the thermal transfer technique. It is a low quality print, but very resistant and economical. It is normally used for serials, barcodes or QR codes. However, simple logos can also be printed.

UV printing (1-5 days) is a color printing technique that can be performed directly on white labels. The print is in CMYK and the result is semi-opaque. UV printed labels are supplied in strips (not on rolls).
This method is ideal for small runs (typically under 500 pieces). For larger runs, we recommend Premium Express printing or offset printing. Contact us for more information.

Offset printing (5-8 weeks) is carried out with the Offset technique, during the label production process. It offers the best print quality ever. The file for printing must be in CMYK, possibly vector.

NTAG216 Chips support password-protection and other features: see all NTAG21x features

Please note: these Tags don't work on metal surfaces.
