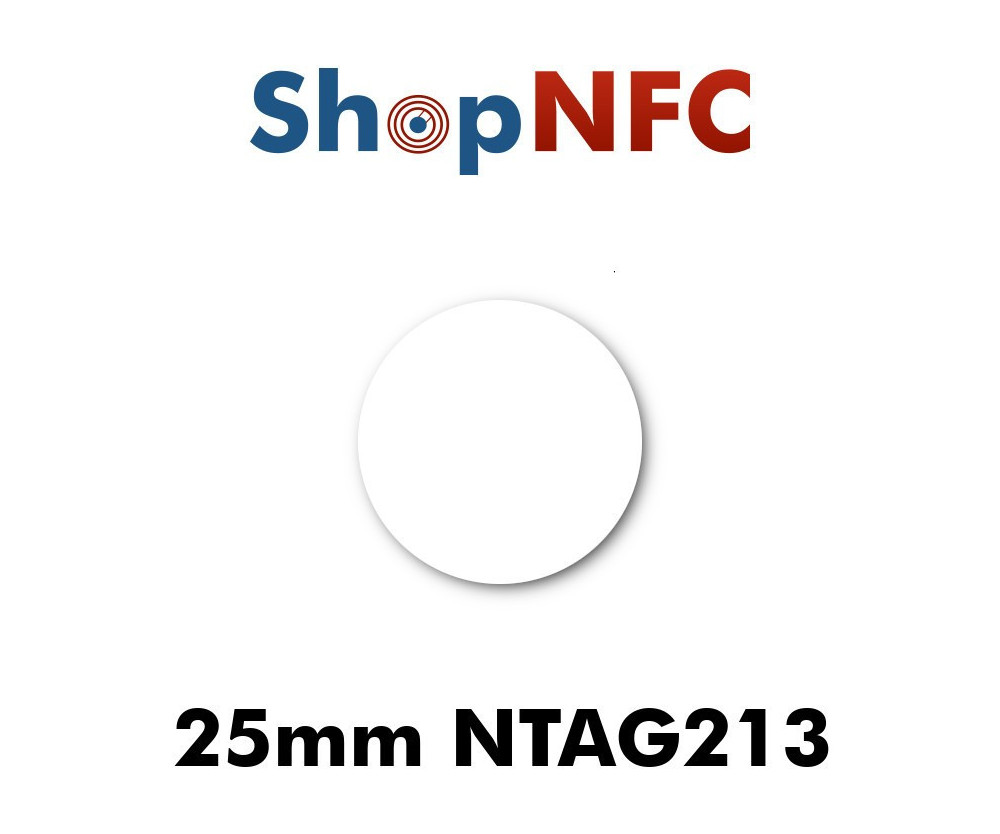

NFC Stickers NTAG213 Round ø25mm

0.69 €
As low as 0.19€/pz. for 10000 pieces . Learn more

Reference ST-N213-25

White NFC Tags with NXP NTAG213 chip. Better perfomances. Universal compatibility. Memory of 144 bytes. Waterproof. Password-protectable.

Custom Printing
  • No
  • Black print | 1-2 days
  • Offset CMYK print | 6-8 weeks

Quantity


In Stock

The minimum quantity order for this product is 10.

Do you need additional services? Click here

Did you find this product at a better price? Contact us



Volume discounts

Quantity Discount Unit Price
50 28.99% 0.49 €
100 49.28% 0.35 €
500 65.22% 0.24 €
1000 68.12% 0.22 €
5000 71.01% 0.20 €
10000 72.46% 0.19 €

Do you need a larger quantity? Did you find this product at a better price? Contact us Order Number
infoAfter completing your order,click here to submit the artwork.

NFC Stickers, equipped with NXP NTAG213 NFC Chip

NTAG213 Stickers Technical Specifications

  • Integrated Circuit (IC): NXP NTAG213
  • Air interface protocol: ISO 14443 A
  • Operation Frequency: 13.56 MHz
  • Memory: 144  bytes
  • Operating temperature:  from -25°C to 70°C / from -13°F to 158°F
  • Storage temperature: from -55°C to 125°C / from -67°F to 257°F
Dimensions
  • Diameter: 25 mm (white sticker)
  • Overall thickness: 120 μm ± 15µm
Materials
  • Polyester PET, Aluminium



NTAG213 Chips support password-protection and other features: see all NTAG21x features

Please note: these Tags don't work on metal surfaces.

Custom printing

NFC Tags are white.

Black printing (1-2 days) is done with the thermal transfer technique. It is a low quality print, but very resistant and economical. It is normally used for serials, barcodes or QR codes. However, simple logos can also be printed.

Offset printing (5-8 weeks) is carried out with the Offset technique, during the label production process. It offers the best print quality ever. The file for printing must be in CMYK, possibly vector.

ST-N213-25
New

Data sheet

NFC Chip
NXP NTAG213
NFC Standard
ISO/IEC 14443-A
NFC Forum
Type 2
Universal Compatibility
Yes
UID (Unique ID)
7 bytes
Available memory
144 bytes
Communication rate
106 kbit/s
Password Protection
Supported
Works on metal
No
Waterproof level
Rain and spray
Protection class
IP54
Commodity code (HS)
85235200
