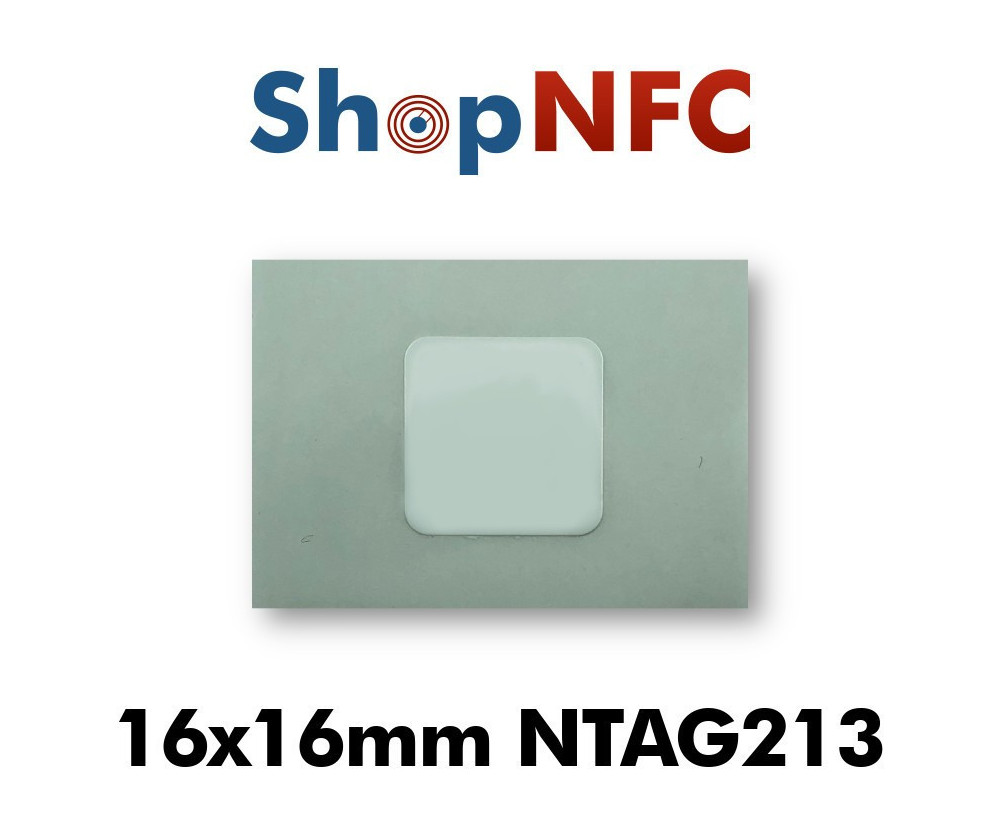

NFC Stickers NTAG213 16x16mm

0.75 €
As low as 0.26€/pz. for 8000 pieces . Learn more

Reference ST-N213-16

White NFC Tags with NXP NTAG213 chip. Better perfomances. Universal compatibility. Memory of 144 bytes. Waterproof. Password-protectable.

Custom Printing
  • No
  • Black print | 1-2 days
  • Offset CMYK print | 6-8 weeks

Quantity


In Stock

The minimum quantity order for this product is 10.

Do you need additional services? Click here

Did you find this product at a better price? Contact us

100% secure payments


Volume discounts
Quantity Discount Unit Price
50 21% 0.59 €
100 29.5% 0.53 €
500 39.4% 0.45 €
1000 54.9% 0.34 €
4000 56.3% 0.33 €
8000 64.7% 0.26 €

Do you need a larger quantity? Did you find this product at a better price? Contact us Order Number
info After completing your order, click here to submit the artwork.

NFC Stickers, equipped with NXP NTAG213 NFC Chip

NTAG213 Stickers Technical Specifications

  • Integrated Circuit (IC): NXP NTAG213
  • Air interface protocol: ISO 14443 A
  • Operation Frequency: 13.56 MHz
  • Memory: 144  bytes
  • Operating temperature:  from -25°C to 70°C / from -13°F to 158°F
  • Storage temperature: from -55°C to 125°C / from -67°F to 257°F
Dimensions
  • 16 x 16 mm (white sticker)
  • Diagonal length: < 21 mm
  • Overall thickness: 120 μm ± 15µm
Materials
  • Polyester PET, Aluminium



NTAG213 Chips support password-protection and other features: see all NTAG21x features

Please note: these Tags don't work on metal surfaces.

Custom printing

NFC Tags are white.

Black printing (1-2 days) is done with the thermal transfer technique. It is a low quality print, but very resistant and economical. It is normally used for serials, barcodes or QR codes. However, simple logos can also be printed.

Offset printing (5-8 weeks) is carried out with the Offset technique, during the label production process. It offers the best print quality ever. The file for printing must be in CMYK, possibly vector.

ST-N213-16
New

Data sheet

NFC Chip
NXP NTAG213
NFC Standard
ISO/IEC 14443-A
NFC Forum
Type 2
Universal Compatibility
Yes
UID (Unique ID)
7 bytes
Available memory
144 bytes
Communication rate
106 kbit/s
Encryption
Not supported
Read/Write endurance
100,000 cycles
Data retention
10 years
Password Protection
Supported
Works on metal
No
Waterproof level
Rain and spray
Protection class
IP54
Commodity code (HS)
85235200
Country of origin
Taiwan
