NFC Cards NXP MIFARE Plus®

0.93 €
As low as 0.81€/pz. for 5000 pieces . Learn more

Reference CA-PLSX2K-BIA

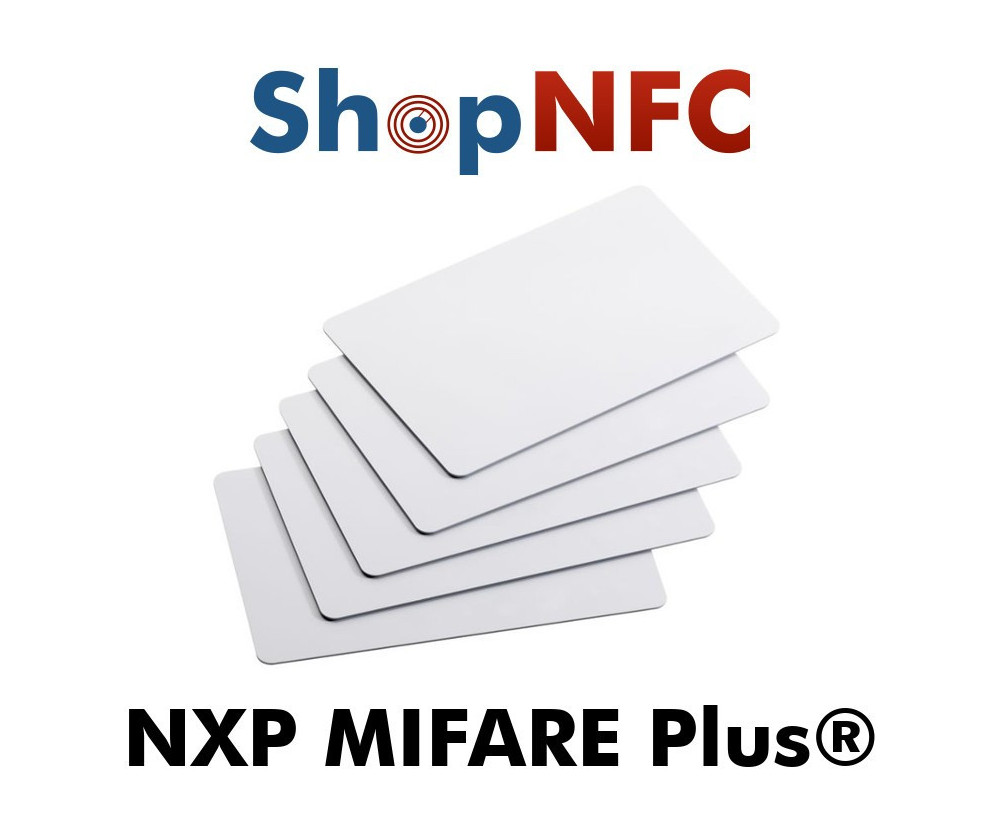

White PVC NFC smartcards, with Chip NXP MIFARE Plus® X 2/4k and NXP MIFARE Plus® S 4k. Support AES-128 encryption. Please select the chip you prefer from the drop-down menu.

NFC Chip
Custom Printing

Quantity


Shipping in 15 days

The minimum quantity order for this product is 1000.

Do you need additional services? Click here

Did you find this product at a better price? Contact us



Volume discounts

Quantity Discount Unit Price
5000 12.9% 0.81 €

Do you need a larger quantity? Did you find this product at a better price? Contact us Order Number
info After completing your order, click here to submit the artwork.

The NXP MIFARE Plus® chip is based on global open standards for both the air interface and cryptographic methods. It is available in two versions: MIFARE Plus® S, the Slim version, for the direct migration of the MIFARE® Classic and MIFARE Plus® X systems, the eXpert version, which offers greater flexibility to optimize the flow of commands for speed, privacy and confidentiality. MIFARE Plus® X offers a rich set of features, including proximity checks against relay attacks.

Card Printing

By default, the cards are white.

Black printing (1-2 days) is done with the thermal transfer technique. It's a low quality print, albeit a tough one. It is usually used for printing serial codes, QR codes, or even the UID of the card itself. However, simple logos can also be printed.

Offset printing (15-20 days) is carried out with the Offset technique, during the production process of the card itself. It offers the best print quality ever. The file for printing must be in CMYK.

Instruction for printing File

  • The file with the graphics must be in one of the following formats: JPG, PNG, PDF, SVG. In the case of non-vector images, we recommend using a resolution of at least 300 DPI.
  • Allow for 2mm bleed on each side: the file size with bleed graphics should be approximately 89.6 x 58mm (cards have actual dimensions of 85.60 x 53.98mm).
  • Please also consider the 2mm inner margin as a "safe area": ​​do not insert important items within 2mm of the edge of the card.
  • Do not insert the crop marks.
  • Finally, please consider that printing on PVC may still have differences in color rendering from printing on paper. To be sure of the rendering of a particular color, please ask us to send you the photo of the first card printed.

N.B. The graphic design studio is not included. Please do not submit similar items to compose. The print file must consist of the final graphics to be composed.

Variable Printing

We print cards with variable fields, such as ID badges with personal photos, at no extra charge.

Variable printing can include: text fields, images, QR code, bar codes, progressive numbers.

To make variable printing, you need to send us:

  • an Excel file with a column for each variable field and a row for each different graphic;
  • the file with the background image common to all the prints;
  • indications on how the various fields should be positioned (the ideal is with an example image complete with all fields);
  • information on any preferences of font, size and formatting of the text;
  • in the case of variable images, the Excel sheet must contain a column with the names of the image files (example: foto1.jpg); in this case, a folder containing all the images (named as in the Excel sheet) must also be attached.

If you want to print completely different subjects, you need to buy the graphic change.

Technical features

  • Operating frequency: 13.56 Mhz
  • Data transfer rate up to 848 Kbit/s
  • CRYPTO1 and AES-128 encryption
  • 4/7-byte UID
  • 2/4 kbyte EEPROM
  • Supported read/write cycles: up to 200,000
  • Data storage: up to 10 years

Application Areas

  • Public transport
  • Access management
  • Electronic toll
  • Car parking
  • Loyalty programs
CA-PLSX2K-BIA
New

Data sheet

NFC Standard
ISO/IEC 14443-A
UID (Unique ID)
4 bytes
Communication rate
848 kbit/s
Encryption
CRYPTO1, AES-128
Read/Write endurance
200,000 cycles
Data retention
10 years
Works on metal
No
Password Protection
Not supported
Waterproof level
Fully Waterproof
