NFC Cards NXP MIFARE® DESFire® EV3

1.79 €

Available on: Wednesday, 15 March, 2023

  This product is currently out of stock. You can order it and it will be shipped as soon as available.

As low as 0.89€/pz. for 6000 pieces . Learn more

Reference 0501600745

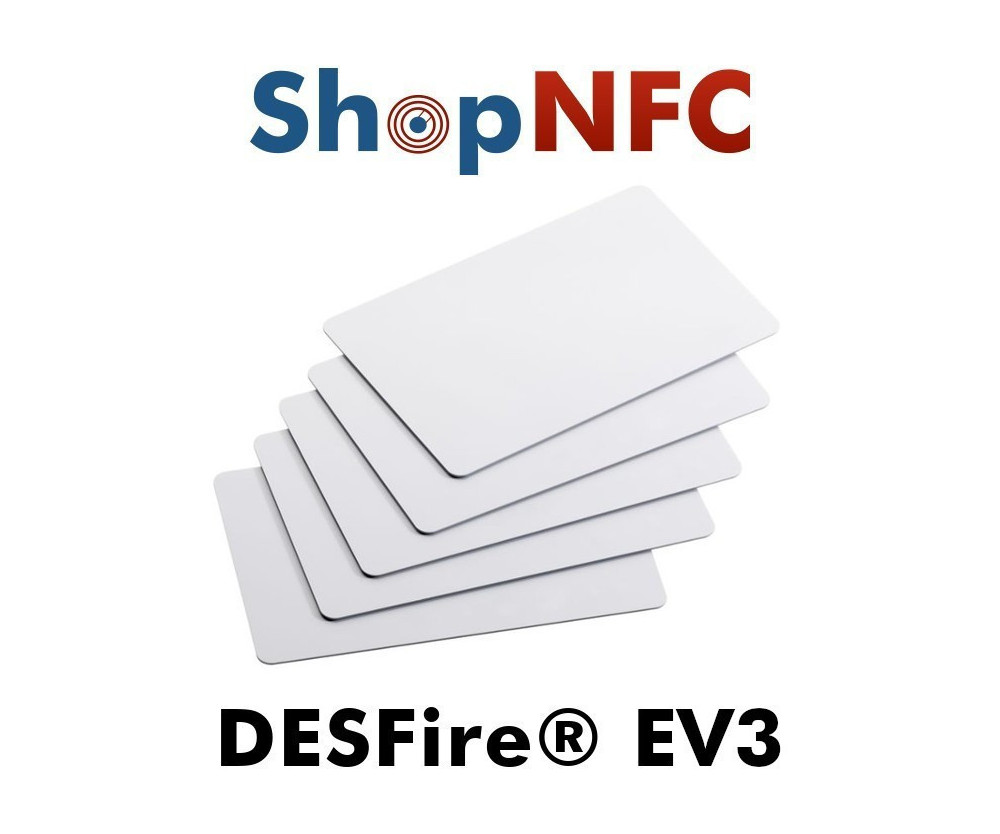

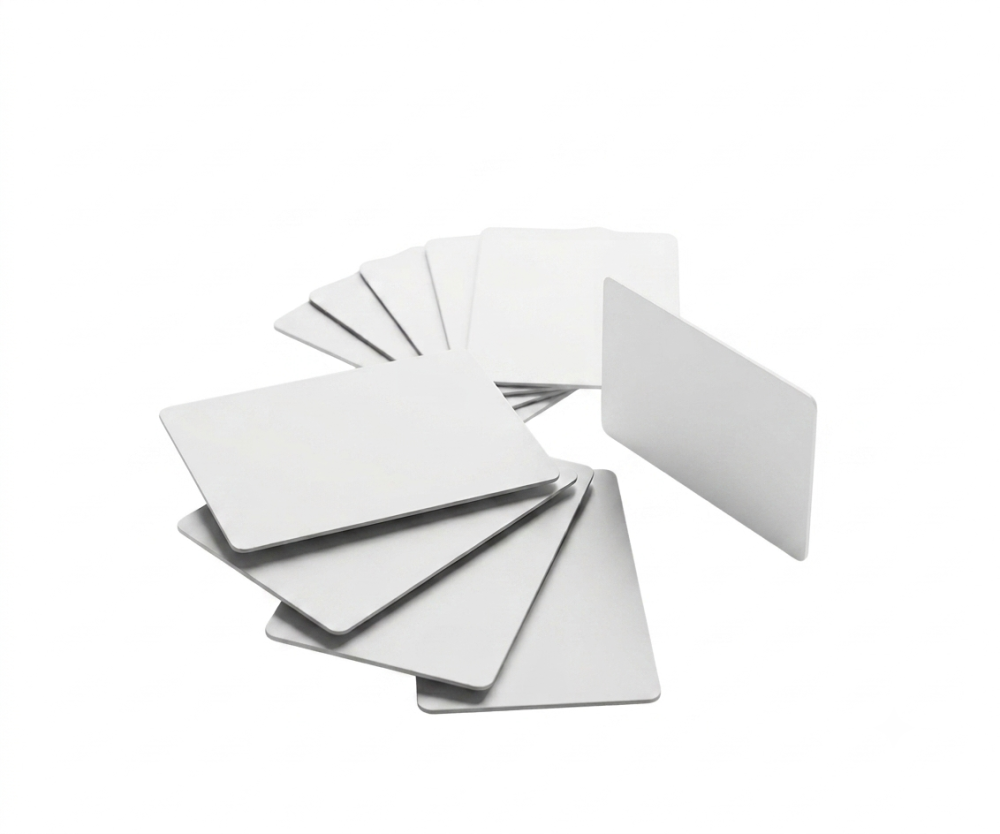

PVC NFC smartcards, with Chip NXP MIFARE® DESFire® EV3 2/4/8 kbytes. Please select the chip you prefer from the menu below.

NFC Chip
  • NXP MIFARE® DESFire® EV3 2k
  • NXP MIFARE® DESFire® EV3 4k
Custom Printing
  • No

Quantity




The minimum quantity order for this product is 10.

Do you need additional services? Click here

Did you find this product at a better price? Contact us



Volume discounts

Quantity Discount Unit Price
50 30.17% 1.25 €
200 37.99% 1.11 €
800 1.02% 1.77 €
2000 47.49% 0.94 €
6000 50.28% 0.89 €

Do you need a larger quantity? Did you find this product at a better price? Contact us Order Number
info After completing your order, click here to submit the artwork.

The NXP MIFARE® DESFire® EV3 contactless chip is ideal for system operators and developers who create reliable, interoperable, and scalable contactless solutions. The second evolution of industry-leading MIFARE DESFire family delivers superior performance, improved security and multi-application support.

The NXP MIFARE® DESFire® EV3 Chip is based on open global standards for both the contactless interface and the encryption methods. It complies with all 4 ISO/IEC 14443A levels and uses ISO/IEC 7816 optional commands. Supports DES/2K3DES/3K3DES/AES hardware encryption algorithms.

Card Printing

By default, the cards are white.

Black printing (1-2 days) is done with the thermal transfer technique. It's a low quality print, albeit a tough one. It is usually used for printing serial codes, QR codes, or even the UID of the card itself. However, simple logos can also be printed.

Color printing (1-4 days) is carried out with the retransfer technique, which offers excellent print quality, both in terms of appearance and durability. It supports full bleed printing (up to the edge) and a resolution of 600 dpi. Large areas of solid color are not recommended. The file for printing must be in RGB.

Offset printing (15-20 days) is carried out with the Offset technique, during the production process of the card itself. It offers the best print quality ever. The file for printing must be in CMYK.

Instruction for printing File

  • The file with the graphics must be in one of the following formats: JPG, PNG, PDF, SVG. In the case of non-vector images, we recommend using a resolution of at least 300 DPI.
  • Allow for 2mm bleed on each side: the file size with bleed graphics should be approximately 89.6 x 58mm (cards have actual dimensions of 85.60 x 53.98mm).
  • Please also consider the 2mm inner margin as a "safe area": ​​do not insert important items within 2mm of the edge of the card.
  • Do not insert the cut marks.
  • Finally, please consider that printing on PVC may still have differences in color rendering from printing on paper. To be sure of the rendering of a particular color, please ask us to send you the photo of the first card printed.

N.B. The graphic design studio is not included. Please do not submit similar items to compose. The print file must consist of the final graphics to be composed.

Variable Printing

We print cards with variable fields, such as ID badges with personal photos, at no extra charge.

Variable printing can include: text fields, images, QR code, bar codes, progressive numbers.

To make variable printing, you need to send us:

  • an Excel file with a column for each variable field and a row for each different graphic;
  • the file with the background image common to all the prints;
  • indications on how the various fields should be positioned (the ideal is with an example image complete with all fields);
  • information on any preferences of font, size and formatting of the text;
  • in the case of variable images, the Excel sheet must contain a column with the names of the image files (example: foto1.jpg); in this case, a folder containing all the images (named as in the Excel sheet) must also be attached.

If you want to print completely different subjects, you need to buy the graphic change. The minimum printable quantity for each subject is 10 pieces.

Technical features

  • Operating frequency: 13.56Mhz
  • Data transfer rate up to 848 Kbit/s
  • Unique ID of 7 bytes
  • 2/4/8 kbyte EEPROM
  • Supported read/write cycles: up to 1,000,000
  • Data retention: up to 25 years

Application fields

  • Advanced public transport
  • Access management
  • Closed-loop micropayments
  • Campus and student identity cards
  • Loyalty programs

0501600745
New

Data sheet

NFC Chip
NXP MIFARE® DESFire® EV3
NFC Standard
ISO/IEC 14443A (1-4) / ISO/IEC 7816
NFC Forum
Type 4
UID (Unique ID)
7 bytes
Available memory
2k - 4k - 8k
Communication rate
848 kbit/s
Read/Write endurance
1 million cycles
Data retention
25 years
Works on metal
No
Waterproof level
Fully Waterproof
Protection class
IP68
Commodity code (HS)
85235200
Country of origin
Malaysia
