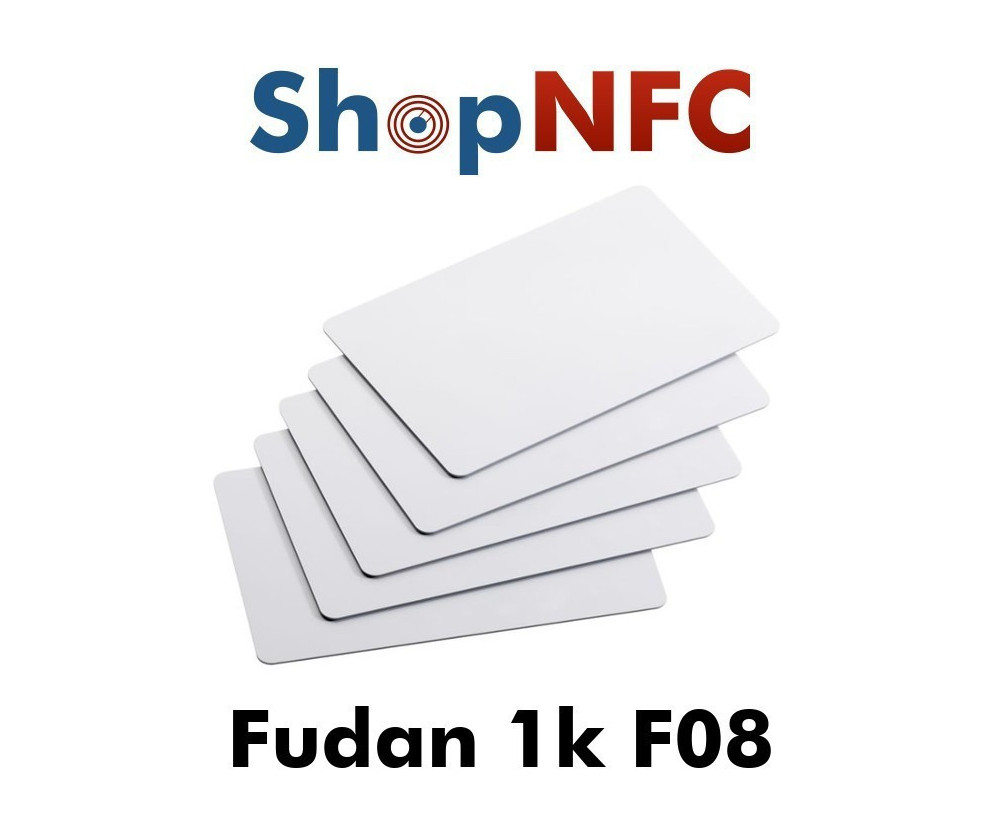

NFC Cards Fudan 1k F08
White PVC NFC smartcards, 85 x 54 mm, with Fudan 1k RFID ISO 14443-A Chip.
Do you need a larger quantity? Did you find this product at a better price? Contact us
White PVC cards, waterproof, resistant, printable. The 1K chip is perfectly integrated into the card and is not visible externally. The antenna runs along the entire perimeter of the card, offering an excellent reading distance.
By default, the cards are white.
Black printing (1-2 days) is done with the thermal transfer technique. It's a low quality print, albeit a tough one. It is usually used for printing serial codes, QR codes, or even the UID of the card itself. However, simple logos can also be printed.
Color printing (1-4 days) is carried out with the retransfer technique, which offers excellent print quality, both in terms of appearance and durability. It supports full bleed printing (up to the edge) and a resolution of 600 dpi. Large areas of solid color are not recommended. The file for printing must be in RGB.
Offset printing (15-20 days) is carried out with the Offset technique, during the production process of the card itself. It offers the best print quality ever. The file for printing must be in CMYK.
Instruction for printing File
- The file with the graphics must be in one of the following formats: JPG, PNG, PDF, SVG. In the case of non-vector images, we recommend using a resolution of at least 300 DPI.
- Allow for 2mm bleed on each side: the file size with bleed graphics should be approximately 89.6 x 58mm (cards have actual dimensions of 85.60 x 53.98mm).
- Please also consider the 2mm inner margin as a "safe area": do not insert important items within 2mm of the edge of the card.
- Do not insert the cut marks.
- Finally, please consider that printing on PVC may still have differences in color rendering from printing on paper. To be sure of the rendering of a particular color, please ask us to send you the photo of the first card printed.
N.B. The graphic design studio is not included. Please do not submit similar items to compose. The print file must consist of the final graphics to be composed.
We print cards with variable fields, such as ID badges with personal photos, at no extra charge.
Variable printing can include: text fields, images, QR code, bar codes, progressive numbers.
To make variable printing, you need to send us:
- an Excel file with a column for each variable field and a row for each different graphic;
- the file with the background image common to all the prints;
- indications on how the various fields should be positioned (the ideal is with an example image complete with all fields);
- information on any preferences of font, size and formatting of the text;
- in the case of variable images, the Excel sheet must contain a column with the names of the image files (example: foto1.jpg); in this case, a folder containing all the images (named as in the Excel sheet) must also be attached.
If you want to print completely different subjects, you need to buy the graphic change. The minimum printable quantity for each subject is 10 pieces.
All our NFC Tags are tested before shipping.
NFC Tags are new, empty, rewritable and have a capacity of 1 kb.
Dimensions: 85 x 54 mm, round corners.
NFC Chip 1k: please check compatibility of your device.
- NFC Chip
- NFC Standard
- ISO/IEC 14443-A
- Universal Compatibility
- UID (Unique ID)
- 4 bytes
- Available memory
- 712 bytes
- Password Protection
- Not supported
- Works on metal
- Waterproof level
- Fully Waterproof
