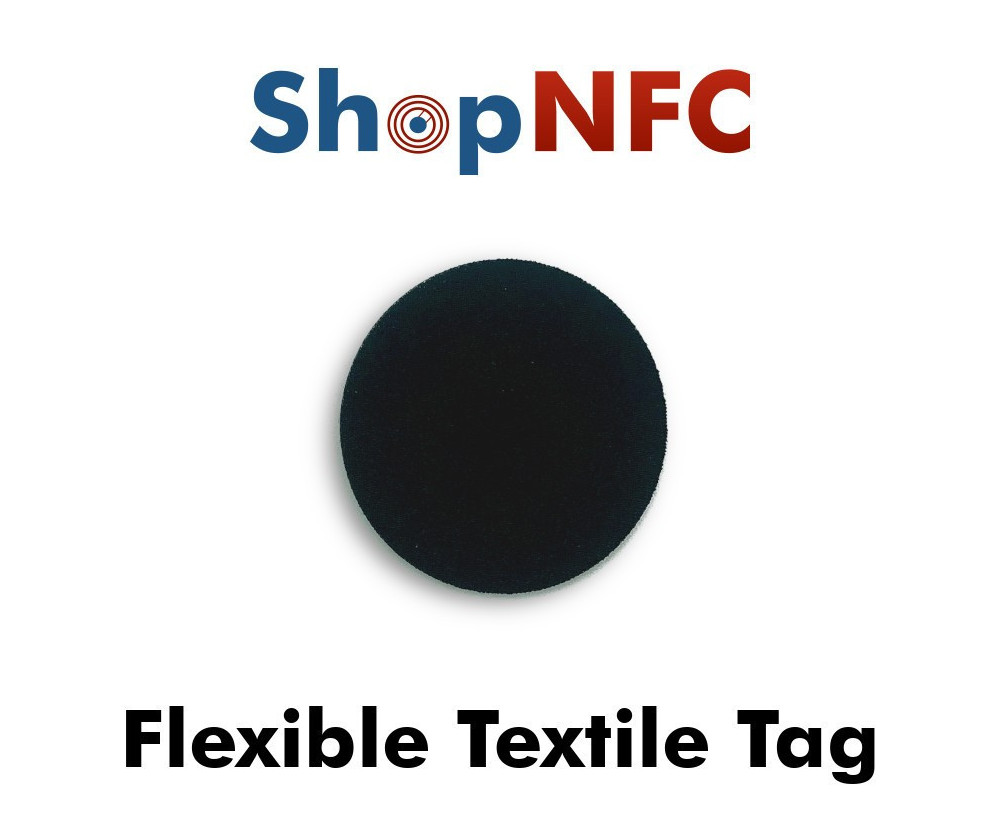

Heat sealable NFC Tags for fabrics - Hotmelt adhesive - NTAG213 / NTAG424

NFC tags for clothing, designed for applications on polyester and nylon, but also excellent on natural yarns, such as silk, wool and linen. These Tags can be applied on the fabric with a heat press or even with an iron.

They are completely waterproof and adhere completely to the textile surface. They are also particularly resistant to washing, thanks to the presence of internal protective layers.

They can be washed at 40°C, resist the spin cycle of a domestic washing machine and can be ironed with a normal iron.

Technical features

• Heat sealable (can be applied with a heat press, adheres completely to the fabric)
• Material: TPU membrane, PET tag
• Flexible and waterproof structure
• Patch Size: 34mm (Side/Diameter)
• Operating temperature: between -20° and 85°C
• Compliant with Standard 100 by OEKO-TEX®

Application to clothing and accessories

The heat-sealable textile NFC Tag can be applied to standard fabrics (polyester, nylon, silk, linen, wool) using a heat press.

Recommended settings for the flat press

• Temperature: 150°C
• Pressure: 2 Bar
• Duration: 12 seconds (tested on lycra)

It is recommended to use the liner on which the Tags are placed as a protective film during application. The side to stick to the fabric is the one with the visible chip.

NFC chip

This NFC Tag is available with NTAG213 or NTAG424 DNA chip. Both are compatible with all NFC smartphones.

The NTAG213 chip can contain a link of up to 132 characters.

The NTAG424 chip can be programmed with a SUN message, which guarantees its authenticity.

➡️ Need them already encoded with anti-counterfeiting URL? Try tag.link DNA
