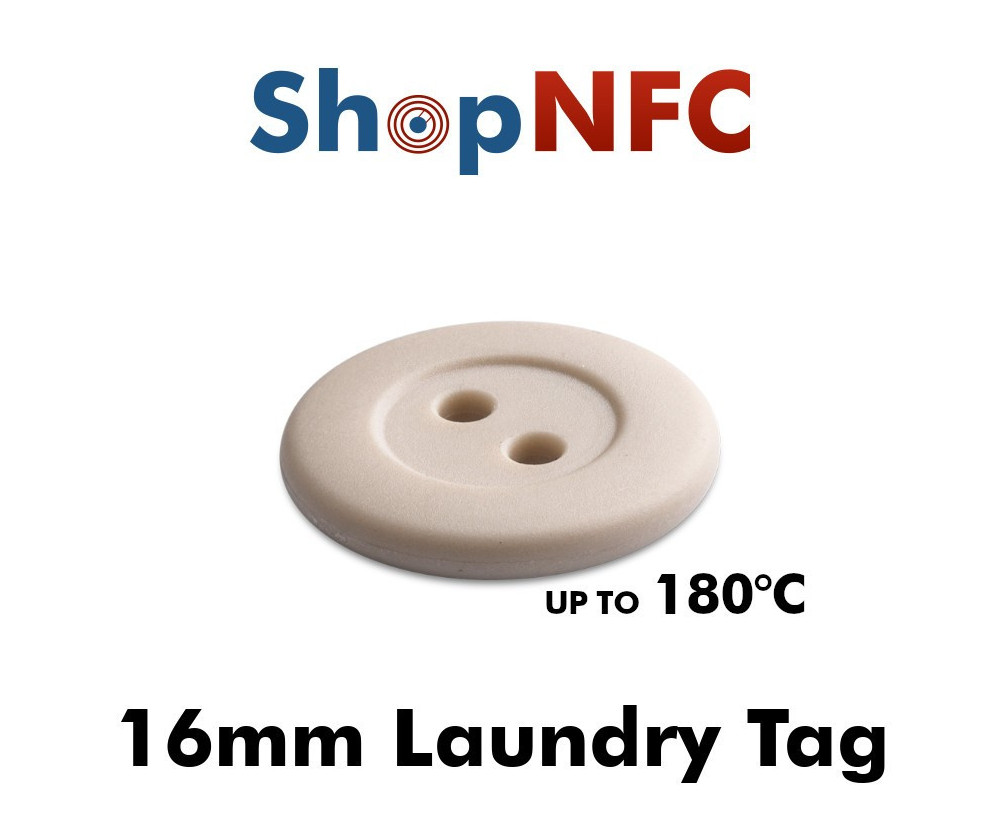

NFC tags resistant to high temperatures, prolonged immersion and industrial cleaning products.

Ideal to be integrated into even work clothes, such as uniforms and work overalls. Useful to uniquely identify the garment and to record its information (for example, the number of washes performed).

They are equipped with 2 small holes to be easily sewn to any textile material.

HID Global's product code: 629110-411 (Logi Button Tag 162 INDUSTRIAL)

Thermal resistance

• Operating temperature: from -25°C to + 85°C
• 120°C for 100 hours
• Resistance to temperature changes: from 20°C to 180°C, 300 cycles of 5 minutes with 30 seconds of transition

Chemical and mechanical resistance

• Waterproof: IP68, immersion resistance in 1 meter of water for 24 hours
• Pressure: 70 bar, 3 isostatic minutes
• Exposure to: hydrogen peroxide (5%), industrial laundry detergent (pH 10-11), neutralizing agent, perchlorethylene (100%)
• Vibration: IEC 68.2.6 [10g, 10… 2000Hz, 3 axes, 2.5 h]
• Shock: IEC 68.2.29 [40g, 18ms, 6 axes, 2000 x]
• Drop test: 100 x 1.8 m
• Axial / radial force: 800 N / 500 N, 10 seconds

Dimensions

• Round, 16mm diameter
• Thickness: 2.5mm
• Weight: 0.85 g

NFC chip

• ICODE SLIX2, compatible with Android and iOS
• Increased speed for Inventory management
• Increased reading range
• Flexible user memory segmentation with separate access conditions
• Digital signature of the manufacturer
• Operating frequency: 13.56 MHz
• Data retention: up to 50 years

Material

• Made of PPS (polyphenylene sulfide)
• White color
