NFC Tags NTAG213 in flexible PET 22mm

NFC Tags NTAG213 in flexible PET 22mm

€0.83
Reference 3006454

Circus Flex's flexible and robust structure allows it to be directly embedded into difficult to tag items, like playing balls, jerseys, jackets or footwear.

Format
Quantity
In Stock

The minimum purchase order quantity for the product is 10.

Do you need additional services? Click here

Did you find this product at a better price? Contact us

Volume discounts
Quantity Unit discount Unit price
50 10% €0.75
100 20% €0.66
500 30% €0.58
1000 40% €0.50
5000 44.58% €0.46
10000 48.19% €0.43

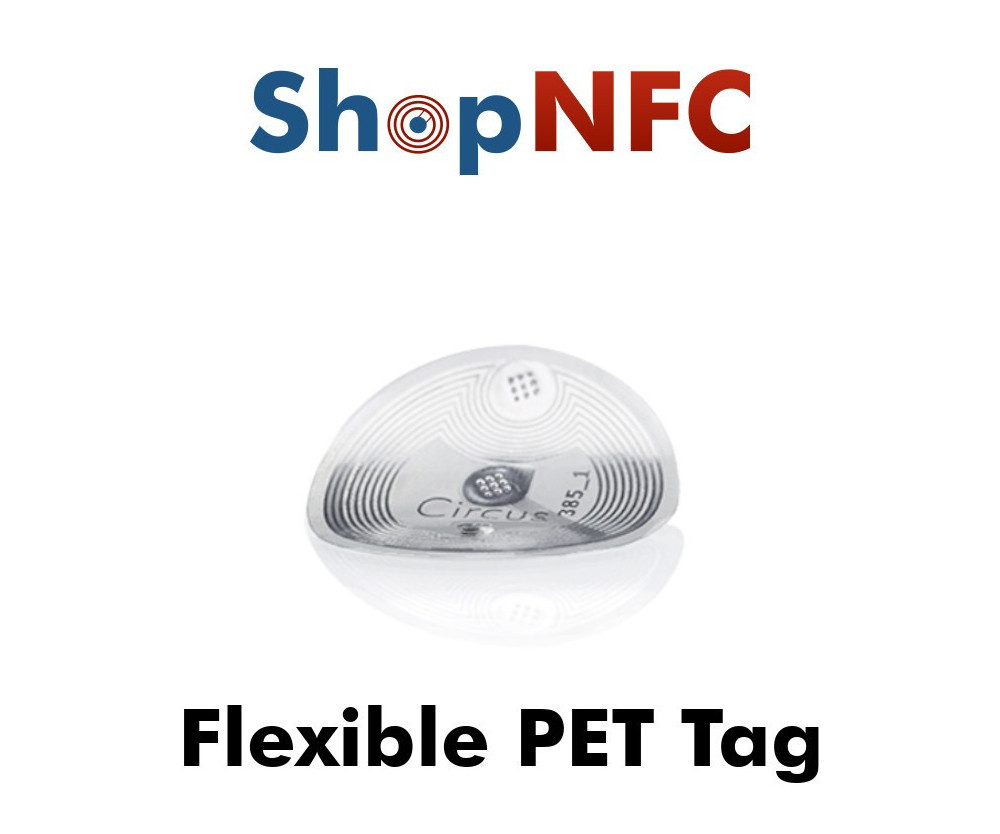

Made of flexible PET plastic, the Circus Flex NFC Tags, are an extremely versatile and reliable product. In just 22 mm in diameter for 0.3 mm thick, they offer a chip with universal compatibility with all NFC smartphones, fully waterproof, very resistant, and easy to apply.

A specialized glob top protects the IC and antenna connection area that makes this Tag a highly protected flexible Tag. It withstands home washing and drying cycles as well as mechanical stress, temperature cycles and impact stress.

Circus Flex is available in adhesive (wet) or non-adhesive (dry) form to suit different requirements.

NTAG213 Chips support password-protection and other features: see all NTAG21x features

Please note: these Tags don't work on metal surfaces.

Technical Specifications

  • NFC Chip: NXP NTAG213
  • Operating Frequency: 13.56 MHz
  • Standard: ISO/IEC 14443A
  • Available memory: 144 bytes user memory
  • Antenna size:  ø 20 mm / 0.79 in
  • Die-cut size: ø 22 mm / 0.87 in
  • Thickness: 305 μm (Dry) / 325 μm (Wet)
  • Operating Temperature: -25°C to 70°C / -13°F to 158°F
  • Bending Diameter: >50 mm, tension less than 10 N

Adhesive

  • Dry format: singulated on sticky PET liner.
  • Wet format: acrylic, solvent-free permanent adhesive. The glue becomes permanent 24 hours after application.

Application Areas

  • Retail
  • Brand Protection
  • Customer Experiences
  • Product Authentication

      Benefits

      • Flexible structure
      • Enhanced environmental resistance
      • Good for wash & wear applications

      Case history

      3006454

      Data sheet

      NFC Chip
      NXP NTAG213
      NFC Standard
      ISO/IEC 14443-A
      NFC Forum
      Type 2
      Universal Compatibility
      Yes
      UID (Unique ID)
      7 bytes
      Available memory
      144 bytes
      Communication rate
      106 kbit/s
      Encryption
      Not supported
      Read/Write endurance
      100,000 cycles
      Data retention
      10 years
      Works on metal
      No
      Password Protection
      Supported
      Waterproof level
      Fully Waterproof
      Commodity code (HS)
      85235200
      Country of origin
      Malaysia
      Old Product Code
      RE-N213-22FW, RE-N213-22FD
      New

      Download

      NXP NTAG213/215/216

      Technical Specification

      Download (364.39KB)

      Smartrac Circus Flex NTAG213

      Download (127.53KB)
