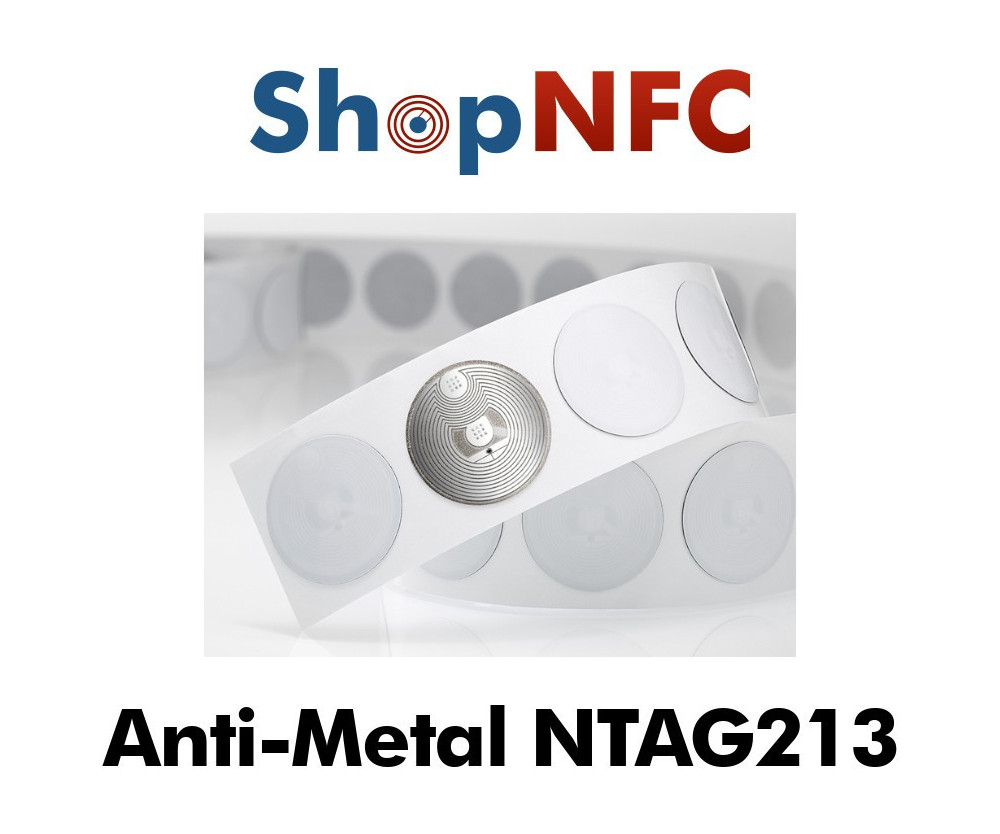

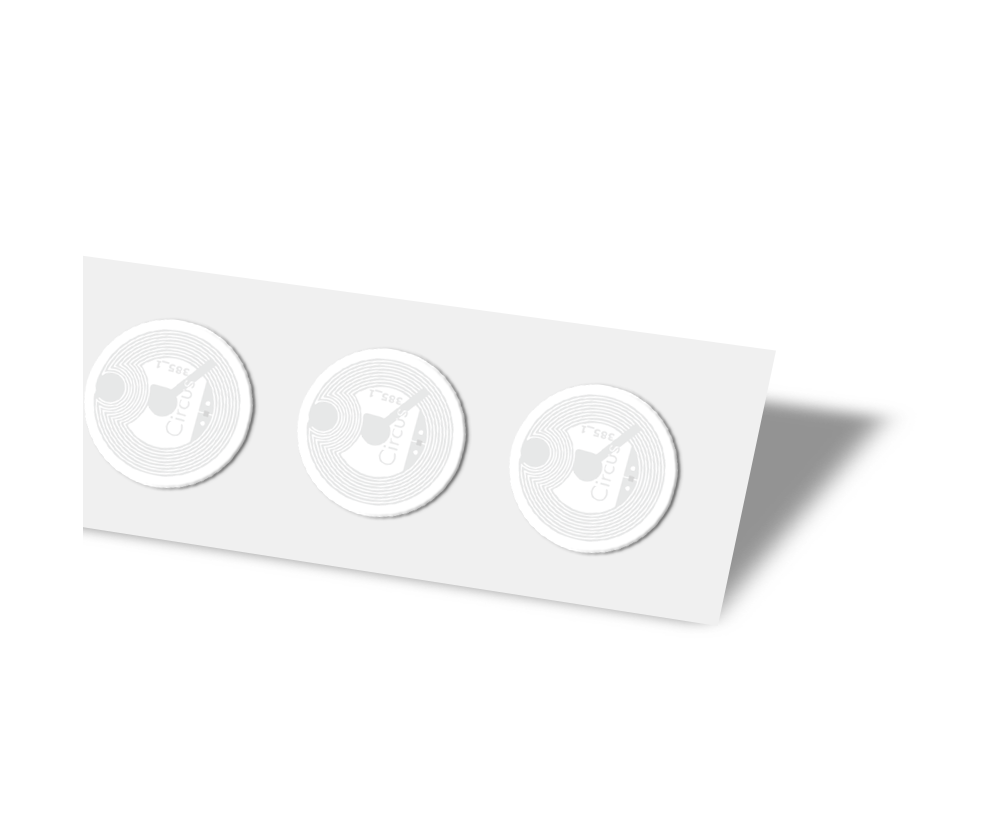

On-metal Round NFC Tags NTAG213 22mm

On-metal Round NFC Tags NTAG213 22mm

€0.75
Reference 3006703

Flexible on-metal NFC stickers, suitable for application on metal surfaces. The NTAG213 Chip is compatible with all mobile devices equipped with NFC.

Custom Printing
Quantity
In Stock

The minimum purchase order quantity for the product is 10.

Do you need additional services? Click here

Did you find this product at a better price? Contact us

Volume discounts

Quantity Unit discount Unit price
50 8% €0.69
100 21% €0.59
500 34.66% €0.49
1000 37.33% €0.47
4000 40% €0.45

For personalized products the artwork can be uploaded here (login necessary).
It can also be uploaded later, from the order details.

On-metal NFC Tags are provided with a ferrite layer between the chip and the adhesive part, so as to isolate the magnetic field of any metal surfaces. As a result, they can also be applied to metal surfaces.

Technical features

  • Surface material: white PP 60
  • Antenna material: aluminum
  • Sticker: RA-25
  • Bending diameter: < 50 mm, voltage less than 10 N

Dimensions

  • Sticker dimensions: diameter 22 mm / 0.87 in
  • Antenna dimensions: diameter 20 mm / 0.79 in
  • Overall thickness: 326 μm
  • Weight: about 1 g

Resistance to temperature

  • Operating temperature: -25 ~ 70°C
  • Storage temperature: -25 ~ 70°C

Contactless chip

  • Manufacturer: NXP
  • Operating frequency: 13.56 MHz
  • Communication speed: 106 kbit/s
  • Available memory: 144 bytes
  • ISO 14443/A Standard - NFC Forum type 2

All our NFC Tags are tested before shipping. The non-working tags are marked with a black mark and are not counted in the send.

Tag Customization

We can print directly on this tag, in black and white or in full color. The printing time varies from 1 to 5 working days, depending on the quantities requested.

In both cases, a printing tolerance of about 1-2 mm should be considered. To achieve the best results, it is recommended to avoid:

  • "Bleed" designs
  • Graphic elements such as frames
  • Important elements very close to the edge

Thermal Transfer Printing in Black

Thermal transfer printing is a printing technique that is performed directly on white labels. The print is in black, without shades. Thermal transfer printing is very durable and is designed to print an identifier, a QR code (even variable), or simple designs with a white background.

UV Color Printing

UV printing is a color printing technique that can be performed directly on white labels. UV printed labels are supplied in strips (not on rolls). The print is in CMYK and the result is semi-opaque. This method is ideal for small runs (typically under 500 pieces). For larger runs, we recommend Premium Express printing or offset printing. Contact us for more information.

3006703

Data sheet

NFC Standard
ISO/IEC 14443-A
NFC Forum
Type 2
Universal Compatibility
Yes
UID (Unique ID)
7 bytes
Available memory
144 bytes
Communication rate
106 kbit/s
Encryption
Not supported
Read/Write endurance
100,000 cycles
Data retention
10 years
Works on metal
Yes
Password Protection
Supported
Waterproof level
Rain and spray
Protection class
IP54
Commodity code (HS)
85235200
Country of origin
Malaysia
Old Product Code
SC-N213-22, SC-N213-22-SM
New

Download

Circus On-metal NTAG213

Technical Specification

Download (143.01KB)
