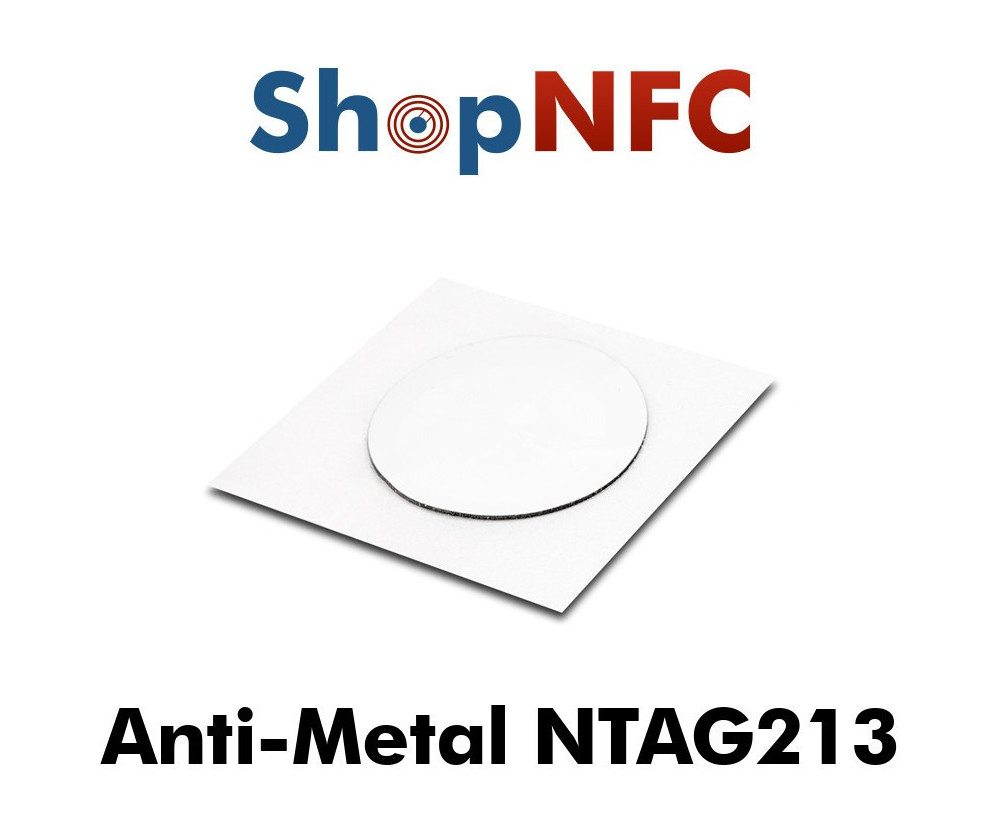

On-metal Round NFC Tags NTAG213 IP68 30mm

On-metal Round NFC Tags NTAG213 IP68 30mm

€0.89
Reference 6E3M30

HID Global IQ On-Metal NFC Labels with NTAG213 Chip, self-adhesive, IP68, 30mm round. Can be printed with resin ribbon and applied on metal surfaces.

Custom Printing
Quantity
In Stock

The minimum purchase order quantity for the product is 10.

Do you need additional services? Click here

Did you find this product at a better price? Contact us

Volume discounts
Quantity Unit discount Unit price
50 11.24% €0.79
100 22.47% €0.69
500 34.86% €0.58
1000 38.2% €0.55
5000 40.45% €0.53

info After completing your order,click here to submit the artwork.


On-metal Tags have a shielding layer of ferrite, so that they can be applied on metal surfaces.

Technical specifications

  • Surface Material: White PET
  • IP68 certified
  • IEC 68.2.6 / IEC 68.2.29 certified (vibration and shock resistance)

Dimensions

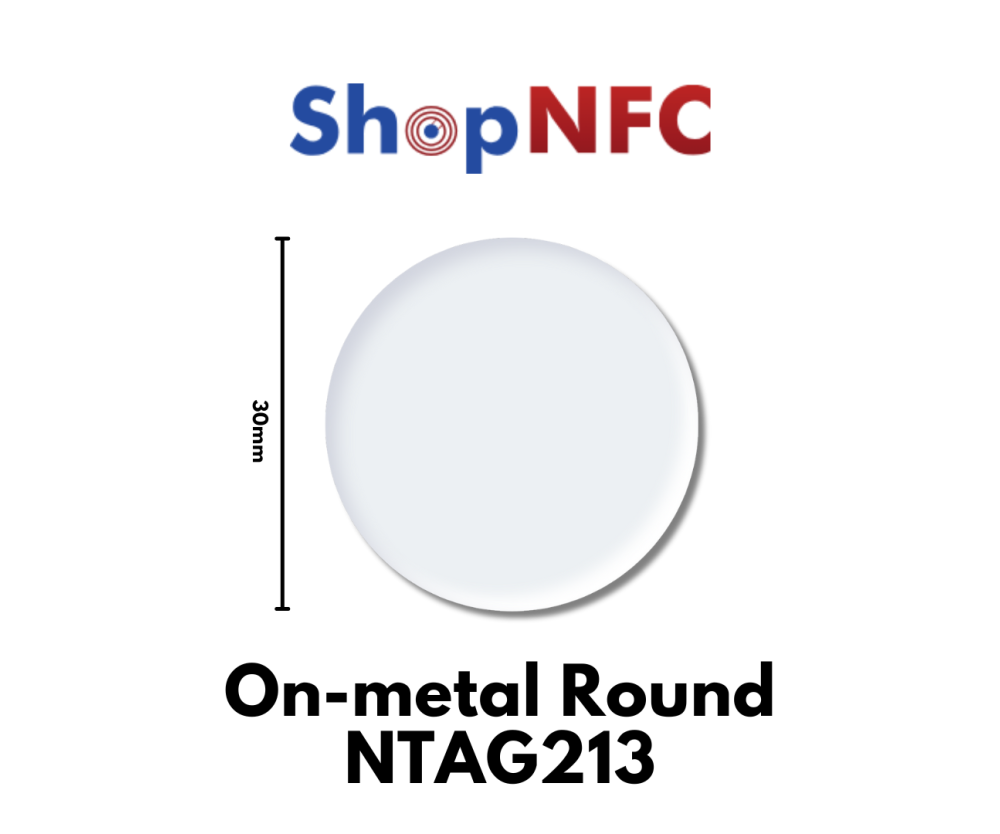

  • Round, diameter 30 mm
  • Thickness: about 0.8 mm
  • Weight: approx 2 g

Temperature withstanding

  • Operating Temperature: -20 ~ 70°C
  • Storage Temperature: -20 ~ 70°C

Contactless NTAG213 chip

  • Manufacturer: NXP
  • Operating frequency: 13.56 MHz
  • Communication rate: 106 kbit/s
  • Available memory: 144 byte
  • NFC Forum type 2 / ISO 14443-A

All our NFC Tags are tested before shipping.

Custom printing

NFC Tags are white.

Black printing (1-2 days) is done with the thermal transfer technique. It is a low quality print, but very resistant and economical. It is normally used for serials, barcodes or QR codes. However, simple logos can also be printed.

6E3M30

Data sheet

NFC Chip
NXP NTAG213
NFC Standard
ISO/IEC 14443-A
NFC Forum
Type 2
Universal Compatibility
Yes
UID (Unique ID)
7 bytes
Available memory
144 bytes
Communication rate
106 kbit/s
Encryption
Not supported
Read/Write endurance
100,000 cycles
Data retention
10 years
Password Protection
Supported
Works on metal
Yes
Waterproof level
Fully Waterproof
Protection class
IP68
Commodity code (HS)
85235200
Country of origin
India
New

Download

HID Global IQ On-Metal

Product data sheet with reference 6E3M30

Download (217.73KB)
