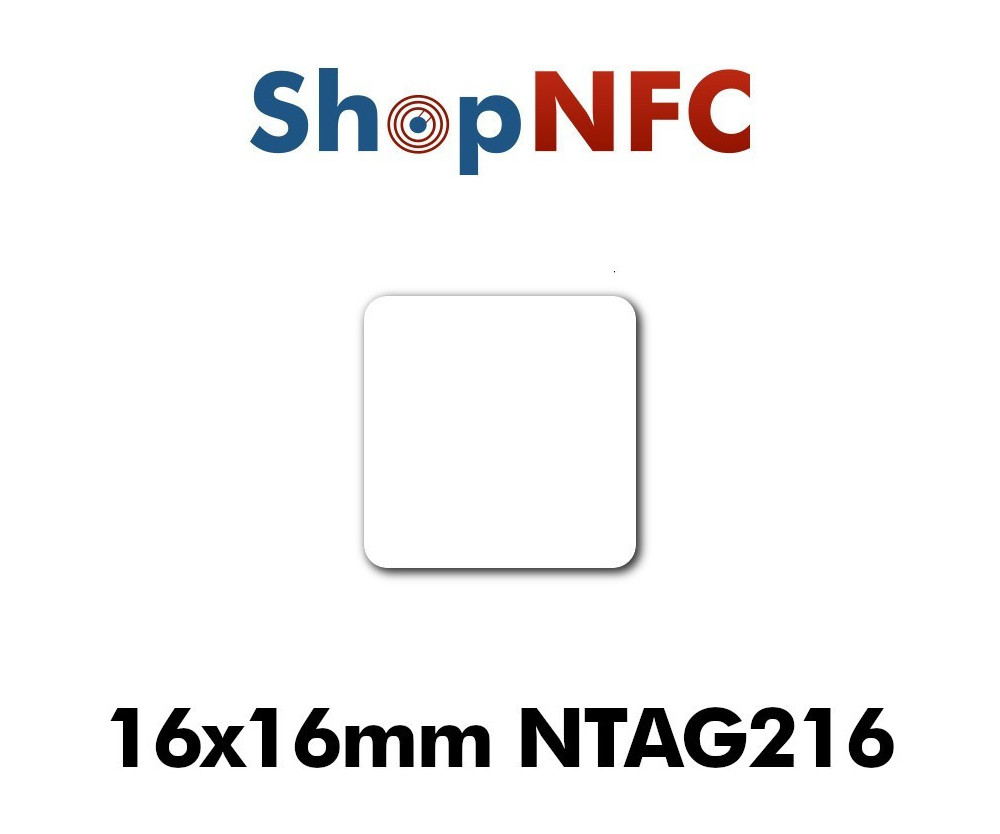

On metal NFC Stickers NTAG216 16x16mm

1.29 €
As low as 0.90€/pz. for 5000 pieces . Learn more

Reference SC-N216-16

White NFC Tags with NXP NTAG216 chip. Better perfomances. Universal compatibility. Memory of 888 bytes. Waterproof. Password-protectable.

Custom Printing
  • No
  • Black print | 1-2 days
  • Offset CMYK print | 6-8 weeks

Quantity


Out of stock. Please check availability with our staff

The minimum quantity order for this product is 10.

Do you need additional services? Click here

Did you find this product at a better price? Contact us

100% secure payments


Volume discounts

Quantity Discount Unit Price
50 8% 1.19 €
100 15% 1.10 €
500 20% 1.03 €
1000 25% 0.97 €
5000 30% 0.90 €

Do you need a larger quantity? Did you find this product at a better price? Contact us Order Number
infoAfter completing your order,click here to submit the artwork.

NFC Stickers, equipped with NXP NTAG216 NFC Chip

NTAG216 Stickers Technical Specifications

  • Integrated Circuit (IC): NXP NTAG216
  • Air interface protocol: ISO 14443 A
  • Operation Frequency: 13.56 MHz
  • Memory: 888  bytes
  • Operating temperature:  from -25°C to 70°C / from -13°F to 158°F
  • Storage temperature: from -55°C to 125°C / from -67°F to 257°F
Dimensions
  • 16 x 16 mm (white sticker)
  • Diagonal length: < 21 mm
Materials
  • Polyester PET, Aluminium, ferrite



NTAG216 Chips support password-protection and other features: see all NTAG21x features

Custom printing

NFC Tags are white.

Black printing (1-2 days) is done with the thermal transfer technique. It is a low quality print, but very resistant and economical. It is normally used for serials, barcodes or QR codes. However, simple logos can also be printed.

Offset printing (5-8 weeks) is carried out with the Offset technique, during the label production process. It offers the best print quality ever. The file for printing must be in CMYK, possibly vector.

SC-N216-16
New

Data sheet

NFC Chip
NXP NTAG216
NFC Standard
ISO/IEC 14443-A
NFC Forum
Type 2
Universal Compatibility
Yes
UID (Unique ID)
7 bytes
Available memory
888 bytes
Communication rate
106 kbit/s
Encryption
Not supported
Read/Write endurance
100,000 cycles
Data retention
10 years
Password Protection
Supported
Works on metal
Yes
Waterproof level
Rain and spray
Protection class
IP54
