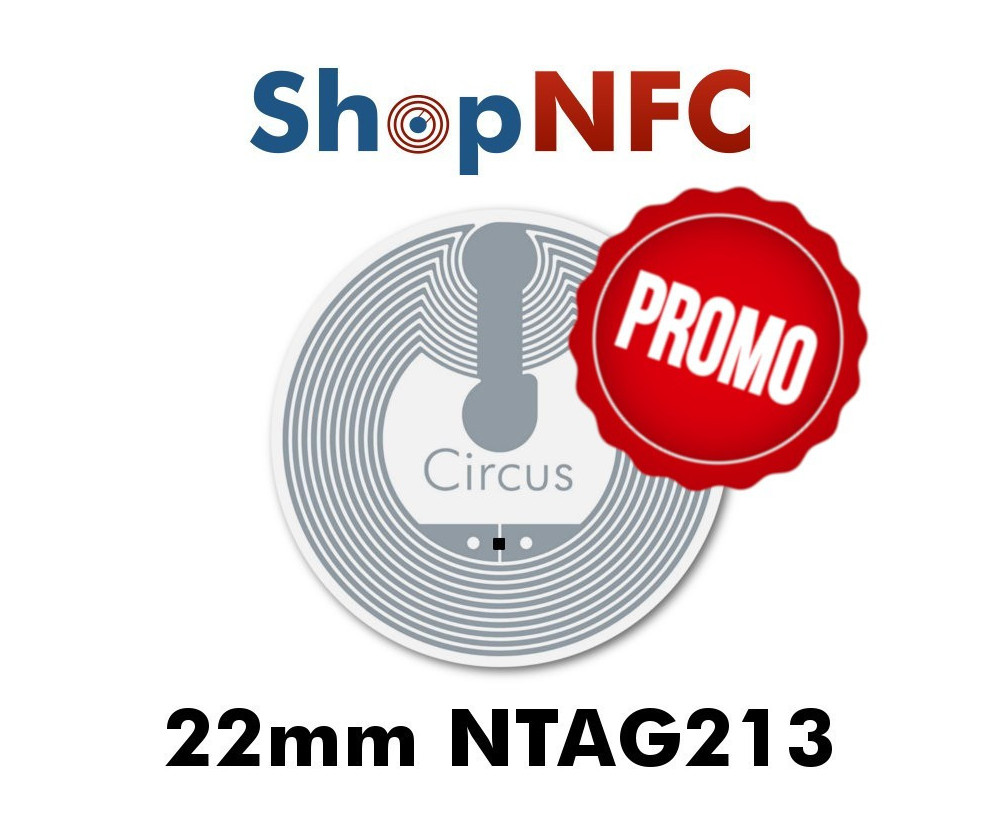

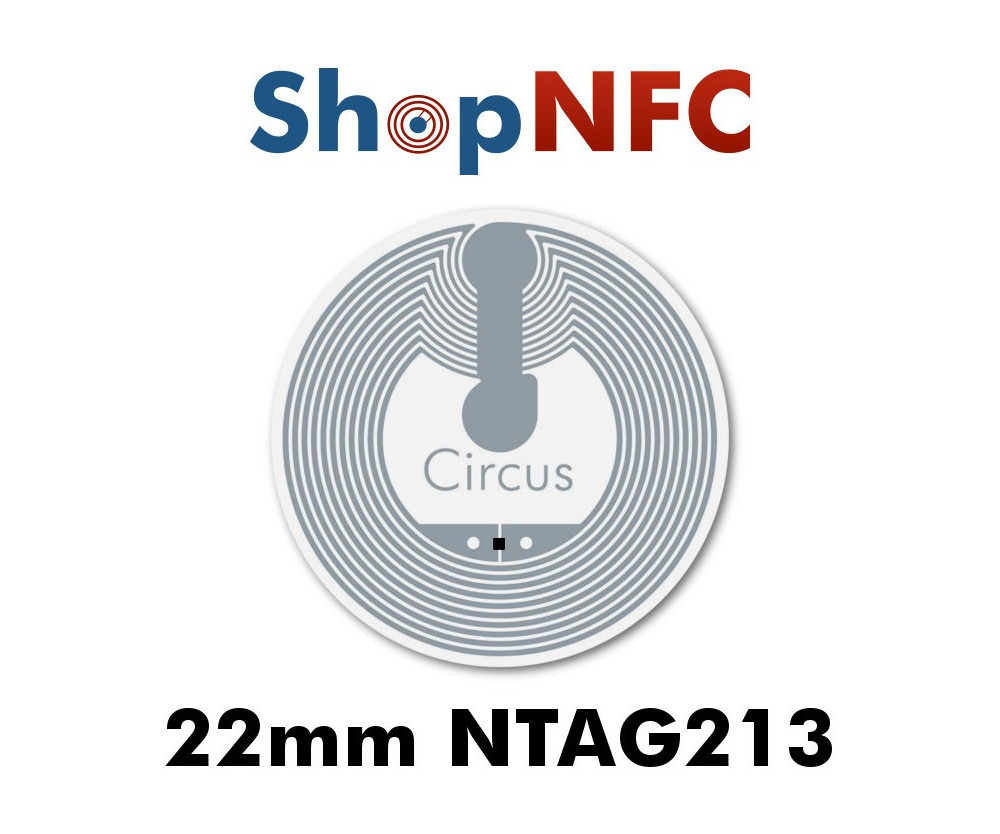

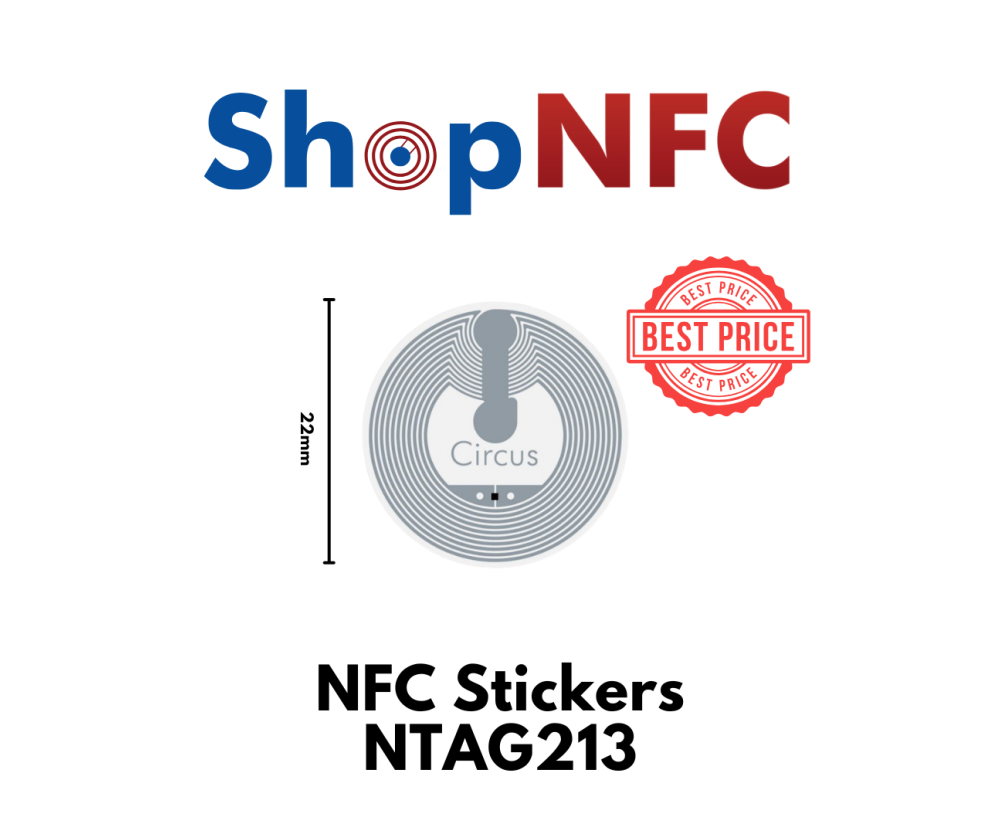

NFC Stickers NTAG213 Round ø22mm

NFC Stickers NTAG213 Round ø22mm

€0.65
Reference IL-602761

Clear NFC Tags with NXP NTAG213 chip. Better perfomances. Universal compatibility. Memory of 144 bytes. Waterproof. Password-protectable.

Quantity
Out of stock. Please check availability with our staff

The minimum purchase order quantity for the product is 10.

Do you need additional services? Click here

Did you find this product at a better price? Contact us

Volume discounts
Quantity Unit discount Unit price
50 24.62% €0.49
100 47.69% €0.34
500 66.15% €0.22
1000 67.69% €0.21
5000 70.77% €0.19
10000 72.31% €0.18

NFC Stickers equipped with NXP NTAG213 Chip.

NTAG213 Stickers Technical Specifications

  • Integrated Circuit (IC): NXP NTAG213
  • Air interface protocol: ISO 14443 A
  • Operation Frequency: 13.56 MHz
  • Memory: 144 bytes
  • Operating temperature:  from -25°C to 70°C / from -13°F to 158°F
  • ESD voltage immunity: ±2 kV peak HBM
  • Bending diameter: > 50 mm, tension less than 10 N
  • Model: Circus NTAG213
Dimensions
  • Antenna size: 20 mm / 0.787 inches
  • Die-cut size: 22 mm / 0.866 inches
  • Overall thickness: 136 μm ± 10%
Materials
  • Transponder face material: Clear PET 12
  • Transponder backing material: Siliconized Paper 56
  • Transponder antenna material: Aluminum, crimped coil



NTAG213 Chips support password-protection and other features: see all NTAG21x features

Please note: these Tags don't work on metal surfaces.

Do you need Tags with larger memory? Try NTAG216 Stickers

IL-602761

Data sheet

NFC Chip
NXP NTAG213
NFC Standard
ISO/IEC 14443-A
NFC Forum
Type 2
Universal Compatibility
Yes
UID (Unique ID)
7 bytes
Available memory
144 bytes
Communication rate
106 kbit/s
Encryption
Not supported
Read/Write endurance
100,000 cycles
Data retention
10 years
Password Protection
Supported
Works on metal
No
Waterproof level
Fully Waterproof
Protection class
IP54
Commodity code (HS)
85235200
Country of origin
P. R. China
Old Product Code
ST-N213-22, 3002981
New

Download

NXP NTAG213/215/216

Technical Specification

Download (364.39KB)

Smartrac Circus NTAG210 / 213

Datasheet of the Circus NTAG210μ and NTAG213 by Avery Dennison Smartrac

Download (132.32KB)

Circus 3002981

Technical datasheet

Download (144.58KB)
