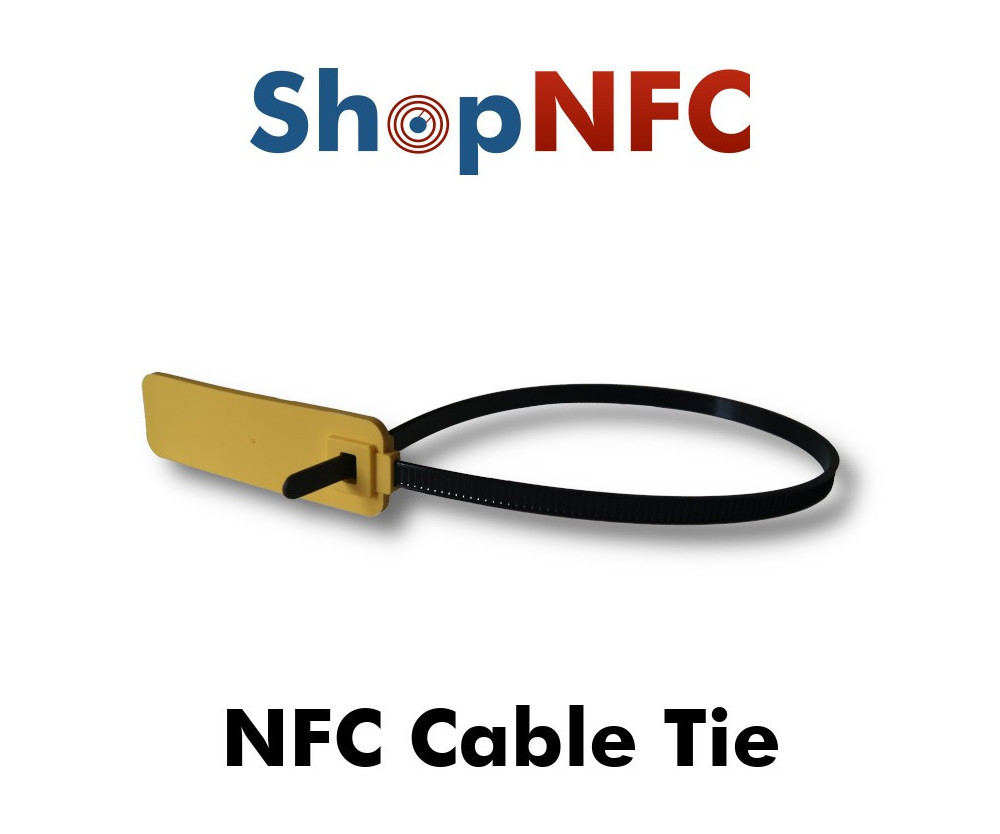

HID Industrial Cable Tie NFC Tags ICODE® SLIX

2.69 €
As low as 1.65€/pz. for 5000 pieces . Learn more

Reference 729990-202

Extremely resistant Cable Ties with embedded NFC Tag, completely waterproof, weatherproof, and suitable for industrial environments. Once closed, cable ties must be broken to be removed.


Quantity


Out of stock. Please check availability with our staff

The minimum quantity order for this product is 10.

Do you need additional services? Click here

Did you find this product at a better price? Contact us



Volume discounts

Quantity Discount Unit Price
50 3.72% 2.59 €
100 11.15% 2.39 €
500 17.84% 2.21 €
1000 23.79% 2.05 €
5000 38.66% 1.65 €

Do you need a larger quantity? Did you find this product at a better price? Contact us Order Number

Extremely resistant Cable Tie with embedded NFC Tag, completely waterproof, weatherproof, and suitable for industrial environments. Once closed, cable ties must be broken to be removed.

Specifications

  • Material: TPE (thermoplastic elastomer) / Nylon 6.6
  • Cable tie dimensions: 380 x 6 x 2 mm
  • Tag's dimensions: 85 x 25 x 3 mm
  • Max. diameter: about 12 cm
  • Storage and operating Temperature: -40 ~ 70 °C
  • Weight: 12 g

Chemical and mechanical resistance

  • Total resistance to water and dust (IP68)
  • Pull resistance: > 550 N (about 56 kg)
  • Withstands Exposure To: mineral oil, petroleum, saline mist, vegetable oil, HCL (10%), bleach (5%); UV light
  • Vibration resistance: IEC 68.2.6 [10 g, 10 to 2000 Hz, 3 axes, 2.5 h]
  • Shock resistance: IEC 68.2.29 [40 g, 18 MS, 6 axes, 2000 times]
  • Axial/radial force resistance: 1000 N, 10 sec
  • Impact Resistance: IEC 62262-IK06
  • Tag's bending radius: 150 mm

NFC Chip

  • NXP ICODE® SLIX
  • Operating frequency: 13.56 MHz
  • ISO/IEC 15693
  • Available memory: 112 bytes
  • 8-byte Unique ID
  • Password-protection supported

Thanks to their TPE housing, these flexible NFC Tags are particularly suitable for use in industrial and/or marine environments. They are resistant to mineral oils, seawater, temperature fluctuations, vibrations and shocks.

The NXP ICODE® SLIX chip complies with the ISO 15693 Standard and is compatible with iPhone and Android smartphones; supports password-protection.

TPE (thermoplastic elastomer) is the same material used used worldwide to manufacture automobile pipes and hoses: it is able to tolerate repeated bending or torsion, while maintaining excellent performance characteristics. The durable casing protects the embedded electronics even in difficult conditions.

729990-202
New

Data sheet

NFC Chip
NXP ICODE® SLIX
NFC Standard
ISO/IEC 15693
NFC Forum
Type V
Universal Compatibility
Yes
UID (Unique ID)
8 bytes
Available memory
112 bytes
Communication rate
53 kbit/s
Encryption
Not supported
Read/Write endurance
100,000 cycles
Data retention
50 years
Password Protection
Supported
Waterproof level
Fully Waterproof
Commodity code (HS)
85235910
Country of origin
Malaysia
Old Product Code
AC-ICO-F3
