uFR Zero CS - NFC Reader/Writer

Name: uFR Zero CS - NFC Reader/Writer
SKU: LS-ZERO-CS
Availability: InStock

79,00 € (96.38 € i.i.)

Riferimento LS-ZERO-CS

Distanza di lettura fino a 170 mm. Supporta ISO 14443, ISO 15693, ISO 7816 e Extended APDU.

Quantità

Non a stock. Verifica disponibilità con i nostri agenti

Hai trovato questo prodotto a un prezzo migliore? Contattaci

Descrizione
Dettagli del prodotto

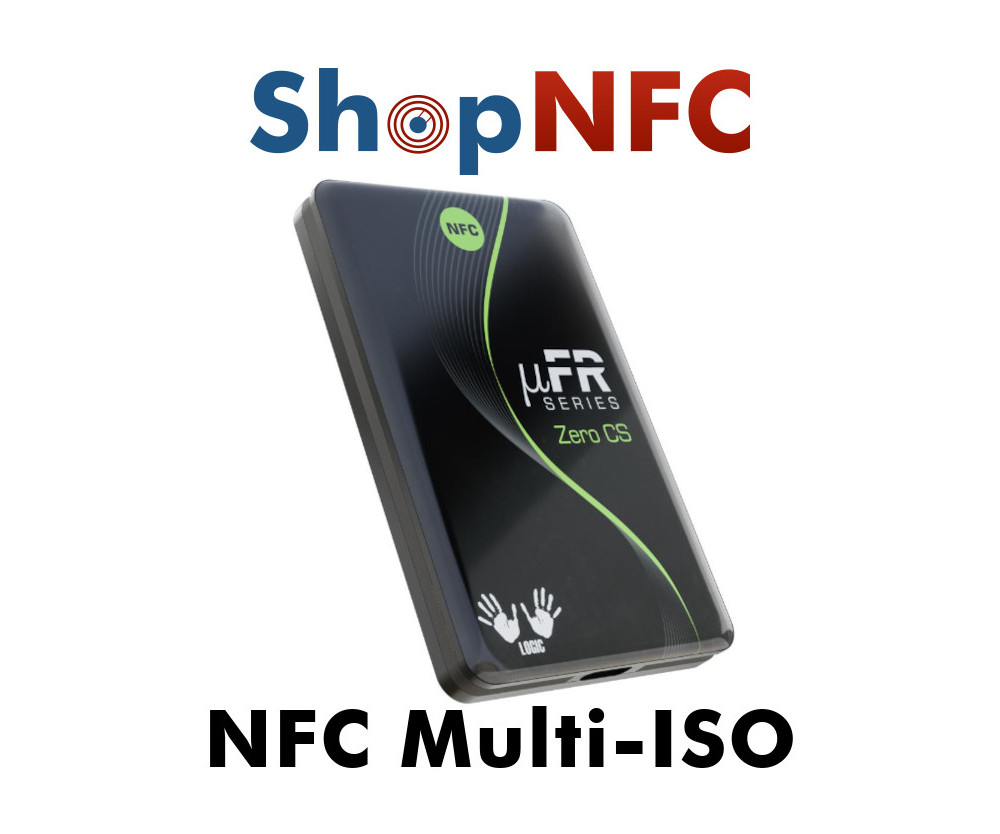

Il lettore wireless µFR Zero CS è un reader/writer NFC. Questo dispositivo include un'interfaccia USB CCID. Sono disponibili librerie SDK gratuite, compatibili con tutti i lettori D-Logic (come il precedente µFR Nano Online).

Caratteristiche principali:

Controllo Dinamico della Potenza
Rilevamento di card a bassa potenza
Anti-collisione

Link utili

Product Series	μFR ZERO
MODEL	μFR Zero CS
Size H x W x D (mm & inches)	84 x 50 x 5mm 3.31 x 1.97 x 0.20 inches
Net Weight (g)
ISO15693 Reading Range (mm & inch)	170 mm 6.67"
ISO14443 Reading Range (mm & inch)	130 mm 5.12"
Data & Power Connection Interface	USB (CDC, HID, CCID) TTL UART RS232 - integrated
Embedded Signalization	RGB LED, Beeper
Advanced Features	Dynamic Power Control Low Power Card Detection Anti-collision
Optional Upgrades
Operating Frequency	13.56 MHz
Supported Standards	ISO14443 A & B ISO15693 ISO7816 Extended APDU
Communication Speed	6.62/26.48/106/212/425 kbps
Operating Current	300 mA
Sleep Current	<30 µA
Operating Voltage	5 V
Operating Temperature	-10 to +70 °C 14 to 158 °F
Encryption	Crypto-1, AES128, AES256, AES-GCM, DES/3DES, ECC, ECDH, ECSA, RSA
Built-in functions
Supported Tag Type	ICODE® (SLI, SLIX SLIX 2, SLIX-L, SLIX-S, DNA, ILT, ILT-M) MIFARE Mini®, MIFARE Classic® (1K, 4K, EV1), MIFARE Ultralight®, MIFARE Ultralight C®, MIFARE Plus® (2K, 4K, S, X, EV1), MIFARE DESFire® (Light, 2K, 4K, 8K, EV1, EV2, EV3), NXP NTAG® 21x (210, 213, 215, 216, Tag Tamper), NXP NTAG® 4xx DNA (413, 424), NXP JCOP® Java Card (J3A040, J3A081, J3H145, JC30M48CR).
Free SDK Projects	Java, Java Applet, JavaScript, Node JS, React, PHP, Lazarus, Delphi, C, C++, Microsoft® Visual .NET package (C#, C++, VB), Python, Arduino IDE
Supported OS	Microsoft® Windows™ Linux® macOS Android iOS
Supported Platforms	Windows x86/x64 Windows ARM/UWP Linux x86/x64 Linux ARM/ARM64/ARMHF macOS x64 iOS x64 Android ESP32 Raspberry Pi BeagleBoard Arduino MIPS boards PLCs
Warranty	2 years + Extended Warranty
