Lecteur/encodeur NFC avec connectivité WiFi et Bluetooth. Il supporte les Tags ISO 14443 A/B, telles que NTAG21x et MIFARE. SDK gratuit disponible.
| Quantité | Remise sur prix unitaire | Prix unitaire |
|---|---|---|
| 10 | 6.7% | 90.50 € |

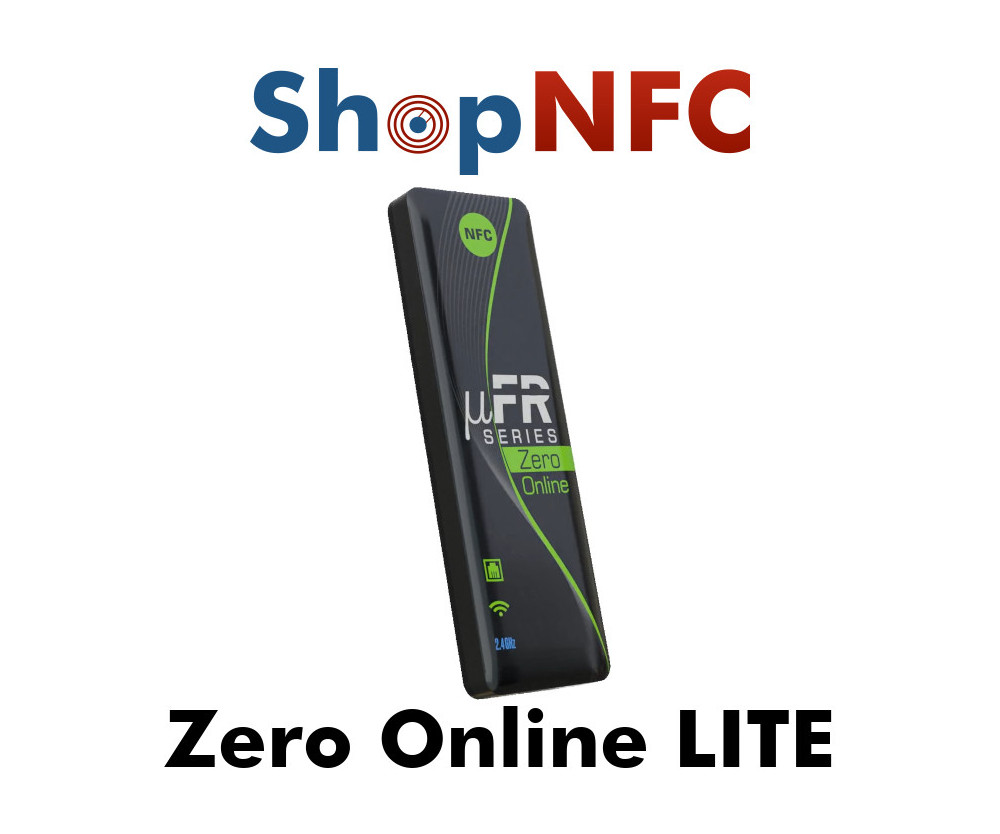

Le lecteur sans fil µFR Zero Online LITE est un lecteur/encodeur NFC multiplateforme, qui peut être utilisé avec tous les principaux systèmes d'exploitation et sur les plateformes matérielles les plus courantes. Il prend en charge les protocoles HTTP POST, TCP/IP et UDP ainsi que les protocoles série, HID.
Des bibliothèques SDK gratuites sont disponibles et compatibles avec tous les lecteurs D-Logic (comme le précédent µFR Nano Online).
| Product Series | μFR ZERO ONLINE |
| MODEL | μFR Zero Online LITE |
| Size H x W x D (mm & inches) | 84 x 25 x 8mm 3.31 x 0.98 x 0.31 inches |
| Net Weight (g) | |
| ISO15693 Reading Range (mm & inch) | 100 mm 3.94" |
| ISO14443 Reading Range (mm & inch) | 75 mm 2.95" |
| Data & Power Connection Interface | USB (CDC, HID, NCP) UART (optional) SPI (optional) Wi-Fi BLE Ethernet (optional) GPIO (optional) |
| Embedded Signalization | RGB LED, Beeper |
| Advanced Features | Anti-collision Dynamic Power Control Low Power Card Detection Battery Charger |
| Optional Upgrades | RTC EEPROM SAM Card Slot Access Control Module Cryptographic Coprocessor/Accelerator RGB LED Ring Display OLED Display Touch Button Micro SD Card Slot F-RAM |
| Operating Frequency | 13.56 MHz |
| Supported Standards | ISO14443 A & B |
| Communication Speed | 6.62/26.48/106/212/425 kbps |
| Operating Current | 180-500 mA |
| Sleep Current | <50 µA |
| Operating Voltage | 5 V |
| Operating Temperature | |
| Encryption | Crypto-1, AES128, AES256, AES-GCM, DES/3DES, ECC, ECDH, ECSA, RSA |
| ESP32 S3 Built-in functions | Cryptographic hardware acceleration: AES128/256 (FIPS PUB 197) Hash (FIPS PUB 180-4) RSA Random Number Generator (RNG) HMAC Digital signature |
| Supported Tag Type | MIFARE Mini®, MIFARE Classic® (1K, 4K, EV1), MIFARE Ultralight®, MIFARE Ultralight C®, MIFARE Plus® (2K, 4K, S, X, EV1), MIFARE DESFire® (Light, 2K, 4K, 8K, EV1, EV2, EV3), NXP NTAG® 21x (210, 213, 215, 216, Tag Tamper), NXP NTAG® 4xx DNA (413, 424), NXP JCOP® Java Card (J3A040, J3A081, J3H145, JC30M48CR). |
| Free SDK Projects | Java, Java Applet, JavaScript, Node JS, React, PHP, Lazarus, Delphi, C, C++, Microsoft® Visual .NET package (C#, C++, VB), Python, Arduino IDE |
| Supported OS | Microsoft® Windows™ Linux® macOS Android iOS |
| Supported Platforms | Windows x86/x64 Windows ARM/UWP Linux x86/x64 Linux ARM/ARM64/ARMHF macOS x64 iOS x64 Android ESP32 Raspberry Pi BeagleBoard Arduino MIPS boards PLCs |
| Warranty | 2 years |
