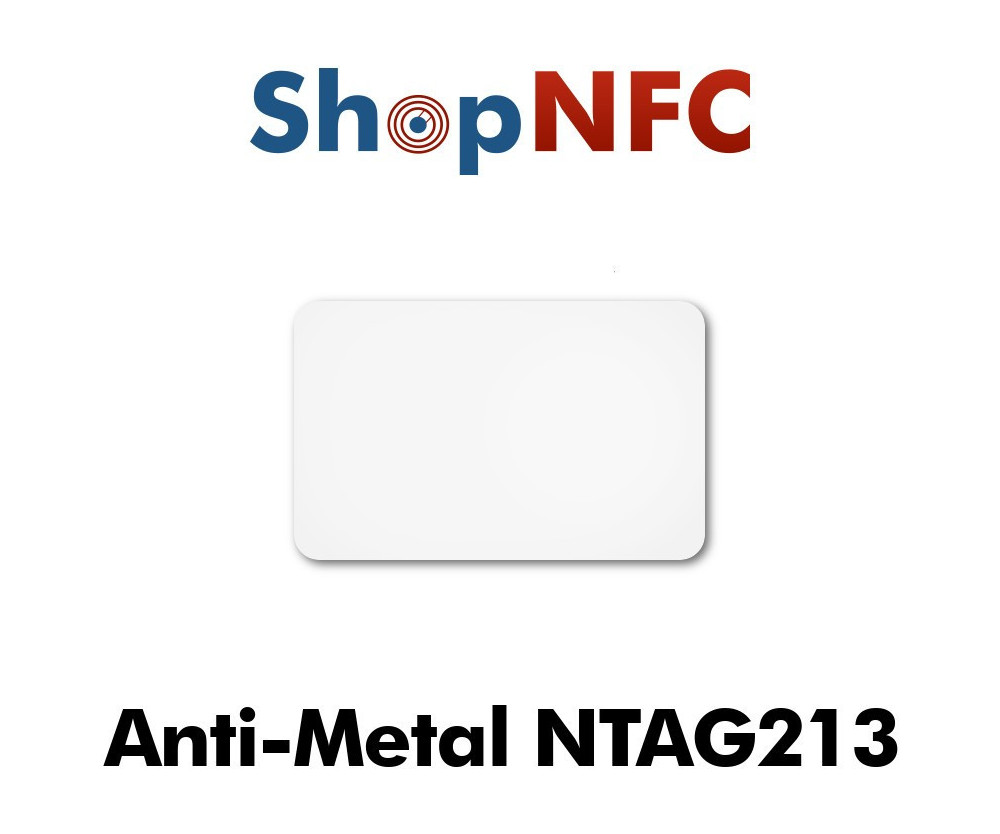

On-metal Tags have a shielding layer of ferrite, so that they can be applied on metal surfaces.

Technical specifications

• Material: polypropylene, aluminium, acrylic, magnetic particle
• IP54 certified
• Anti-metal (also applicable on metal surfaces)
• Adhesive layer: acrylic

Dimensions

• Sticker dimensions: 26.5 x 42 mm (white sticker)
• Antenna dimensions: 22.5 x 38 mm
• Thickness: about 0.4 mm
• Weight: approx. 1 g

Temperature withstanding

• Operating Temperature / Humidity: -25~70°C / RH40%
• Storage Temperature / Humidity: -25~70°C / RH40%

Contactless IC chip

• Manufacturer: NXP
• Operating frequency: 13.56 MHz
• Communication rate: 106 kbit/s
• Available memory: 144 bytes

All our NFC Tags are tested before shipping.

Custom printing

These NFC Tags are white. We can print directly on this tag, in black and white or in full color.

A printing tolerance of about 1-2 mm should be considered. To achieve the best results, it is recommended to avoid:

• Designs printed to the edge (except from offset printing)
• Graphic elements such as frames
• Important elements very close to the edge

Black printing (1-2 days) is done with the thermal transfer technique. It is a low quality print, but very resistant and economical. It is normally used for serials, barcodes or QR codes. However, simple logos can also be printed.

UV printing (1-5 days) is a color printing technique that can be performed directly on white labels. The print is in CMYK and the result is semi-opaque. UV printed labels are supplied in strips (not on rolls).
This method is ideal for small runs (typically under 500 pieces). For larger runs, we recommend Premium Express printing or offset printing. Contact us for more information.

Offset printing (5-8 weeks) is carried out with the Offset technique, during the label production process. It offers the best print quality ever. The file for printing must be in CMYK, possibly vector.
