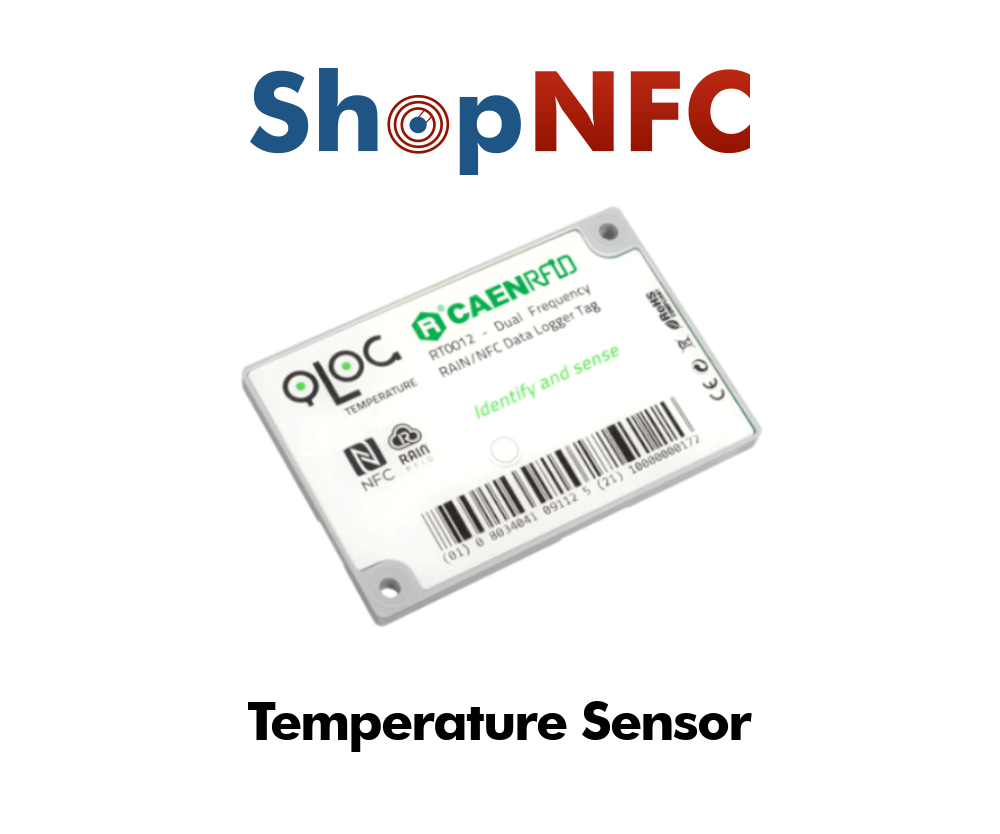

NFC/UHF Temperature Sensor with Data Logger

The sensor, large tag memory and dual frequency NFC and RAIN RFID make it easy to create solutions for tracking during transport of temperature sensitive products.

The RFID interface allows the massive reading of products at long distance through checkpoints or RFID gates while the NFC interface allows manual control of the single product by the employees or the consumer.

The qLog can be configured to store in the internal memory up to 4,096 temperature readings with intervals from 5 seconds to 18 hours, also specifying different alarm thresholds to guarantee an accurate analysis of temperature changes.

The compact size of the tag allows the use of the logger in many applications. Also, being a semi-passive tag it can be used for air shipments.

Download the qLogNFC app for Android, to configure and read the data logger with a smartphone.

Technical specifications

• Frequency of use: NFC/HF 13.56 MHz, RAIN / UHF 860 ÷ 930 MHz
• Protocols: NFC/RFID ISO 14443 Type A, RAIN RFID EPC Class 1 Gen 2 ISO18000-63
• Tag Type: Semi Passive
• Memory: up to 4096 readings
• Usage temperature: -30 ° C to 70 ° C
• Reading distance: NFC / HF: up to 5 cm, RAIN / UHF: up to 5 meters.
• EPC: 160 bits
• User Memory: 448 bits
• Battery life: up to 1 year (depending on temperatures)
• Battery type: Li/MnO2 Model Renata CR2430SN
• IP rating: IP68
• Material: ABS
• Dimensions: (W) 92 x (L) 63 x (H) 6.5mm3
• Weight: 35g

For further information please, refer to the following link
