uFR Zero XL OEM USB - Multi-ISO NFC Reader/Writer

Name: uFR Zero XL OEM USB - Multi-ISO NFC Reader/Writer
SKU: LS-ZERO-XL
Availability: InStock

€109.00

Reference LS-ZERO-XL

Extra long reading distance up to 300 mm. Supports ISO 14443, ISO 15693, ISO 7816, Extended APDU.

Quantity

Out of stock. Please check availability with our staff

Did you find this product at a better price? Contact us

Description
Product Details

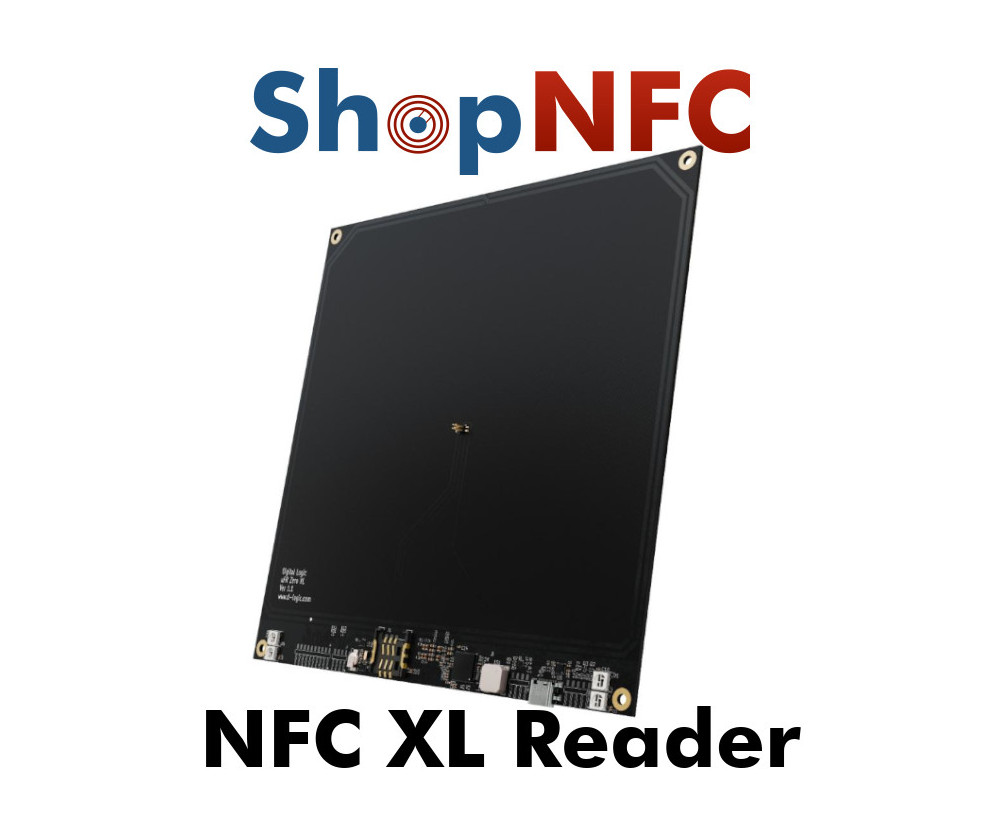

The reader µFR Zero XL is an NFC reader/writer with an extra long reading distance up to 300 mm for the ISO15693 tags, and 210 mm for the ISO14443 tags. This device includes a USB-CCID interface. Other available interface variants are: TTL UART, RS232 via external convertors. Free SDK libraries are available and compatible with all D-Logic readers (such as the previous µFR Nano Online).

Main features:

Dynamic power control
Low power card detection
anti-collision

Useful links

Product Series	μFR ZERO
MODEL	μFR Zero XL
Size H x W x D (mm & inches)	170 x 170 x 5mm 6.69 x 6.69 x 0.20 inches
Net Weight (g)
ISO15693 Reading Range (mm & inch)	300 mm 11.81"
ISO14443 Reading Range (mm & inch)	210 mm 8.27"
Data & Power Connection Interface	USB (CDC, HID, CCID) TTL UART RS232 via external convertors
Embedded Signalization	RGB LED, Beeper
Advanced Features	Dynamic Power Control Low Power Card Detection Anti-collision
Optional Upgrades	Real-Time Clock Cryptographic Coprocessor/Accelerator SAM Card Slot Access Control Module RGB LED Display OLED Display
Operating Frequency	13.56 MHz
Supported Standards	ISO14443 A & B ISO15693 ISO7816 Extended APDU
Communication Speed	6.62/26.48/106/212/425 kbps
Operating Current	300 mA
Sleep Current	<30 µA
Operating Voltage	5 V
Operating Temperature	-10 to +70 °C 14 to 158 °F
Encryption	Crypto-1, AES128, AES256, AES-GCM, DES/3DES, ECC, ECDH, ECSA, RSA
Built-in functions
Supported Tag Type	ICODE® (SLI, SLIX SLIX 2, SLIX-L, SLIX-S, DNA, ILT, ILT-M) MIFARE Mini®, MIFARE Classic® (1K, 4K, EV1), MIFARE Ultralight®, MIFARE Ultralight C®, MIFARE Plus® (2K, 4K, S, X, EV1), MIFARE DESFire® (Light, 2K, 4K, 8K, EV1, EV2, EV3), NXP NTAG® 21x (210, 213, 215, 216, Tag Tamper), NXP NTAG® 4xx DNA (413, 424), NXP JCOP® Java Card (J3A040, J3A081, J3H145, JC30M48CR).
Free SDK Projects	Java, Java Applet, JavaScript, Node JS, React, PHP, Lazarus, Delphi, C, C++, Microsoft® Visual .NET package (C#, C++, VB), Python, Arduino IDE
Supported OS	Microsoft® Windows™ Linux® macOS Android iOS
Supported Platforms	Windows x86/x64 Windows ARM/UWP Linux x86/x64 Linux ARM/ARM64/ARMHF macOS x64 iOS x64 Android ESP32 Raspberry Pi BeagleBoard Arduino MIPS boards PLCs
Warranty	2 years + Extended Warranty
