uFR Zero QS - Multi-ISO NFC Reader Writer with free SDK

Name: uFR Zero QS - Multi-ISO NFC Reader Writer with free SDK
SKU: LS-ZERO-QS
Availability: InStock

€69.00

Reference LS-ZERO-QS

NFC reader/writer that supports ISO 14443, ISO 15693, ISO 7816, Extended APDU.

Quantity

Out of stock. Please check availability with our staff

Did you find this product at a better price? Contact us

Description
Product Details

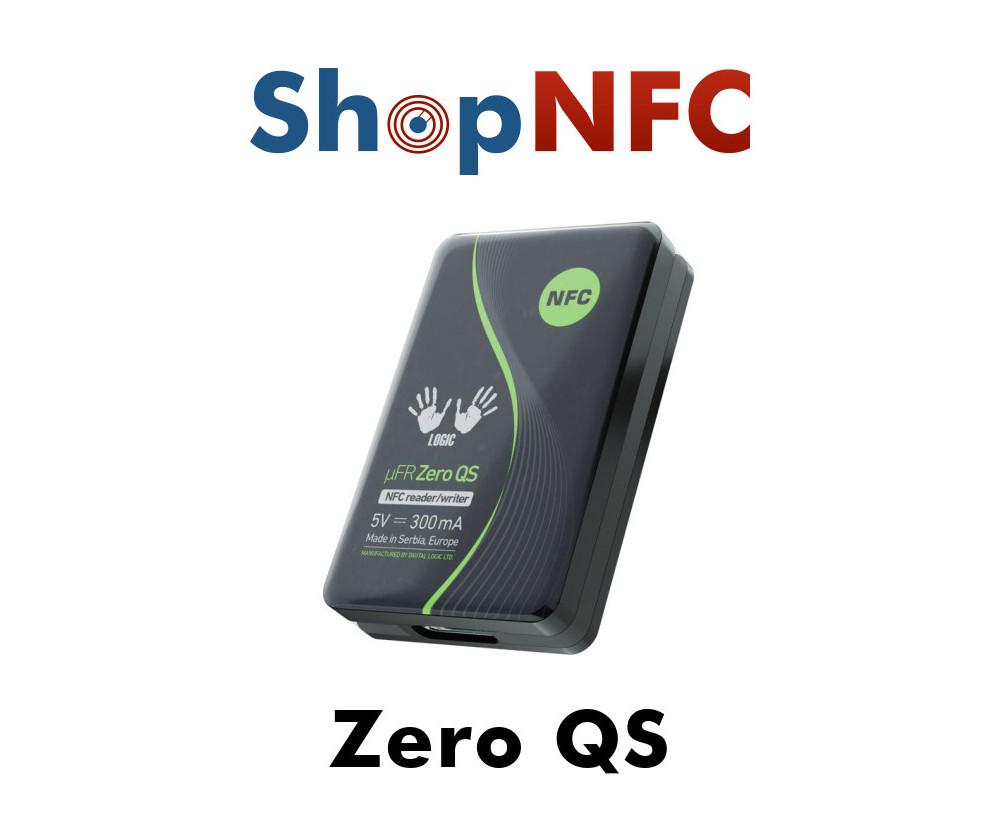

The wireless reader µFR Zero QS is an NFC reader/writer. This device includes a USB-CCID. Free SDK libraries are available and compatible with all D-Logic readers (such as the previous µFR Nano Online).

Main features:

Dynamic power control
Low-energy card detection
Anti-collision

Useful links

Product Series	μFR ZERO
MODEL	μFR Zero QS
Size H x W x D (mm & inches)	40 x 24 x 5,7mm 1.57 x 0.94 x 0.22 inches
Net Weight (g)
ISO15693 Reading Range (mm & inch)	100 mm 3.94"
ISO14443 Reading Range (mm & inch)	60 mm 2.36"
Data & Power Connection Interface	USB (CDC, HID, CCID) TTL UART RS232 via external convertors
Embedded Signalization	RGB LED, Beeper
Advanced Features	Dynamic Power Control Low Power Card Detection Anti-collision
Optional Upgrades	Real-Time Clock Cryptographic Coprocessor/Accelerator SAM Card Slot Access Control Module RGB LED Display OLED Display
Operating Frequency	13.56 MHz
Supported Standards	ISO14443 A & B ISO15693 ISO7816 Extended APDU
Communication Speed	6.62/26.48/106/212/425 kbps
Operating Current	300 mA
Sleep Current	<30 µA
Operating Voltage	5 V
Operating Temperature	-10 to +70 °C 14 to 158 °F

Encryption	Crypto-1, AES128, AES256, AES-GCM, DES/3DES, ECC, ECDH, ECSA, RSA
Built-in functions
Supported Tag Type	ICODE® (SLI, SLIX SLIX 2, SLIX-L, SLIX-S, DNA, ILT, ILT-M) MIFARE Mini®, MIFARE Classic® (1K, 4K, EV1), MIFARE Ultralight®, MIFARE Ultralight C®, MIFARE Plus® (2K, 4K, S, X, EV1), MIFARE DESFire® (Light, 2K, 4K, 8K, EV1, EV2, EV3), NXP NTAG® 21x (210, 213, 215, 216, Tag Tamper), NXP NTAG® 4xx DNA (413, 424), NXP JCOP® Java Card (J3A040, J3A081, J3H145, JC30M48CR).
Free SDK Projects	Java, Java Applet, JavaScript, Node JS, React, PHP, Lazarus, Delphi, C, C++, Microsoft® Visual .NET package (C#, C++, VB), Python, Arduino IDE
Supported OS	Microsoft® Windows™ Linux® macOS Android iOS
Supported Platforms	Windows x86/x64 Windows ARM/UWP Linux x86/x64 Linux ARM/ARM64/ARMHF macOS x64 iOS x64 Android ESP32 Raspberry Pi BeagleBoard Arduino MIPS boards PLCs
Warranty	2 years + Extended Warranty
