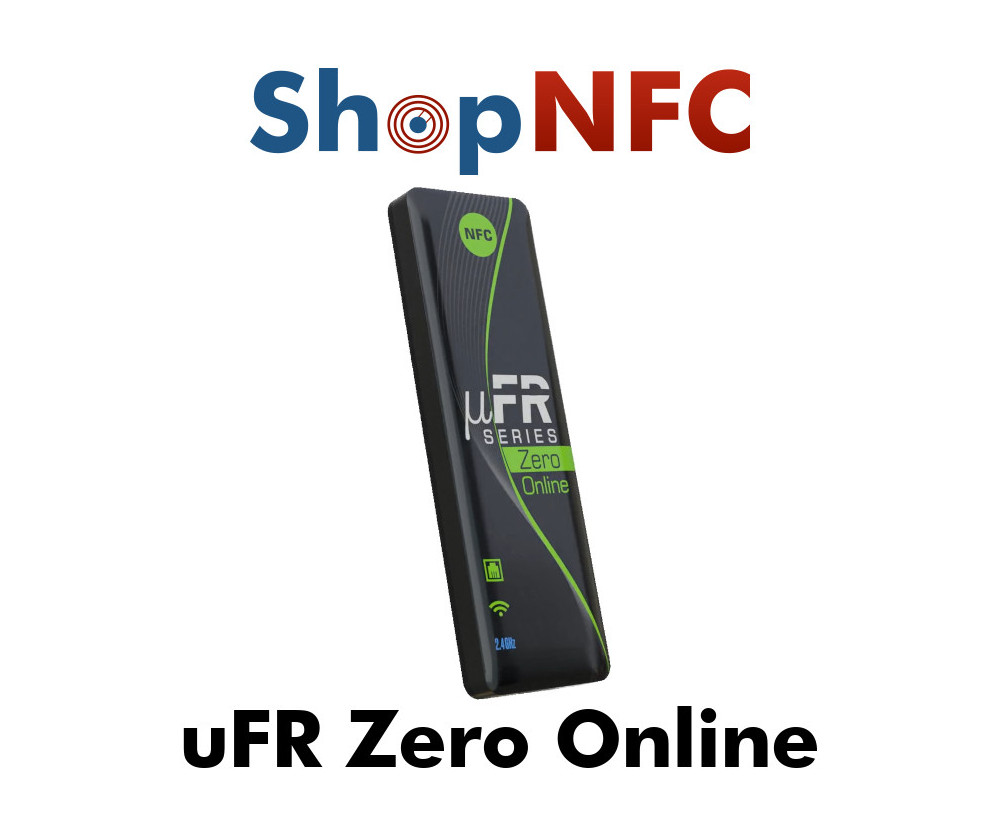

uFR Zero Online - Multi-ISO NFC Reader/Writer with Wi-Fi & BLE

Name: uFR Zero Online - Multi-ISO NFC Reader/Writer with Wi-Fi & BLE
SKU: LS-ZERO-OL
Price: 111.03 EUR
Availability: InStock

€119.00

Reference LS-ZERO-OL

Multi-ISO NFC reader with WiFi and Bluetooth connectivity. It supports both ISO 14443 and 15693 tags such as NTAG and ICODE. Free SDK available.

Quantity

Out of stock. Please check availability with our staff

Did you find this product at a better price? Contact us

Volume discounts

Quantity	Unit discount	Unit price
10	6.7%	€111.03

Description
Product Details

The wireless reader µFR Zero Online is a multi-platform NFC reader/writer, which can be used with all major operating systems and on the most common hardware platforms. It supports HTTP POST, TCP/IP and UDP protocols as well as Serial, HID, protocols.

Free SDK libraries are available and compatible for all D-Logic readers (such as the previous µFR Nano Online).

Main benefits

Sending HTTP POST requests
Sending UDP broadcasts
Wi-Fi repeater
TCP/IP communication
Keyboard input via HID mode.
Write code directly inside the device. Make device standalone.
Use device on a remote location (no PC host required).

Useful links

Product Series	μFR ZERO ONLINE
MODEL	μFR Zero Online
Size H x W x D (mm & inches)	84 x 25 x 8mm 3.31 x 0.98 x 0.31 inches
Net Weight (g)
ISO15693 Reading Range (mm & inch)	100 mm 3.94"
ISO14443 Reading Range (mm & inch)	75 mm 2.95"
Data & Power Connection Interface	USB (CDC, HID, NCP) UART (optional) SPI (optional) Wi-Fi BLE Ethernet (optional) GPIO (optional)
Embedded Signalization	RGB LED, Beeper
Advanced Features	Anti-collision Dynamic Power Control Low Power Card Detection Battery Charger
Optional Upgrades	RTC EEPROM SAM Card Slot Access Control Module Cryptographic Coprocessor/Accelerator RGB LED Ring Display OLED Display Touch Button Micro SD Card Slot F-RAM
Operating Frequency	13.56 MHz
Supported Standards	ISO14443 A & B ISO15693 ISO7816
Communication Speed	6.62/26.48/106/212/425 kbps
Operating Current	180-500 mA
Sleep Current	<50 µA
Operating Voltage	5 V
Operating Temperature

Encryption	Crypto-1, AES128, AES256, AES-GCM, DES/3DES, ECC, ECDH, ECSA, RSA
ESP32 S3 Built-in functions	Cryptographic hardware acceleration: AES128/256 (FIPS PUB 197) Hash (FIPS PUB 180-4) RSA Random Number Generator (RNG) HMAC Digital signature
Supported Tag Type	ICODE® (SLI, SLIX SLIX 2, SLIX-L, SLIX-S, DNA, ILT, ILT-M) MIFARE Mini®, MIFARE Classic® (1K, 4K, EV1), MIFARE Ultralight®, MIFARE Ultralight C®, MIFARE Plus® (2K, 4K, S, X, EV1), MIFARE DESFire® (Light, 2K, 4K, 8K, EV1, EV2, EV3), NXP NTAG® 21x (210, 213, 215, 216, Tag Tamper), NXP NTAG® 4xx DNA (413, 424), NXP JCOP® Java Card (J3A040, J3A081, J3H145, JC30M48CR).
Free SDK Projects	Java, Java Applet, JavaScript, Node JS, React, PHP, Lazarus, Delphi, C, C++, Microsoft® Visual .NET package (C#, C++, VB), Python, Arduino IDE
Supported OS	Microsoft® Windows™ Linux® macOS Android iOS
Supported Platforms	Windows x86/x64 Windows ARM/UWP Linux x86/x64 Linux ARM/ARM64/ARMHF macOS x64 iOS x64 Android ESP32 Raspberry Pi BeagleBoard Arduino MIPS boards PLCs
Warranty	2 years + Extended Warranty
