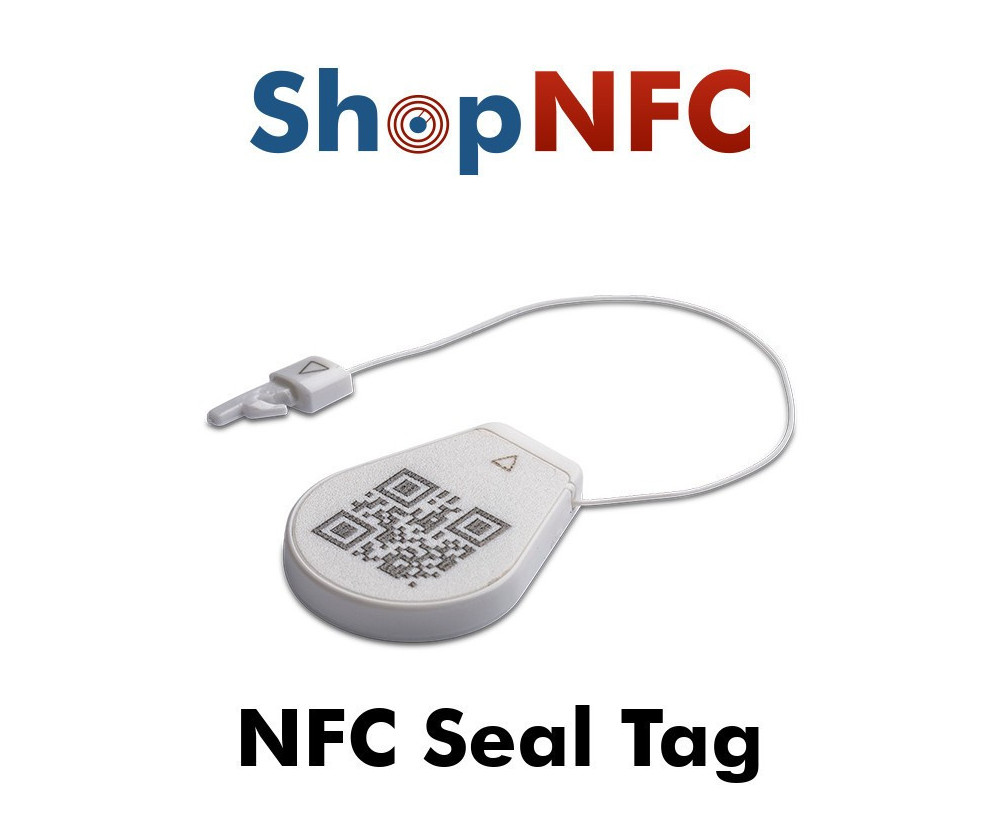

Seal Tag eTamper ICODE® SLIX

The Seal Tag eTamper (electronic tamper) can be fixed very easily, with a closure similar to a padlock. Once connected to an item, the wire is closed and the Tag becomes operative. To remove it, you need to break the wire, making the tag permanently unreadable.

This NFC seal is the ideal product whenever you need to authenticate an item where the Tag is affixed, or to make sure that an asset has not been opened/handled since the last maintenance.

eTamper Tags can not be removed or reused in a malicious way. The wire, however, the pull strength has been optimized so that a human can break it when needed, but the tag does not accidentally open.

The Seal Tag can be customized with the laser engraving of a QR code that coincides with the chip's UID (see drop-down menu).

NFC IC Specifications

• NXP ICODE® SLIX
• Available memory: 112 bytes
• 8-byte UID
• NFC Forum Type V
• ISO/IEC 15693

Specifications

• Material: polycarbonate (PC)
• Dimensions: approximately 23 x 17 x 3 mm (wire length: 65 mm)
• Operating temperature: -40 ~ 85 ° C
• Storage temperature: -40 ~ 90 ° C
• Weight: about 1 g

Resistance characteristics

• Vibration resistance: IEC 68.2.6 [10 g, 10 to 2000 Hz, 3 axes, 2.5 h]
• Impact resistance: IEC 68.2.29 [40 g, 18 ms, 6 axes, 2000 times]
• Traction force: 10 N minimum (connector should not go out)
