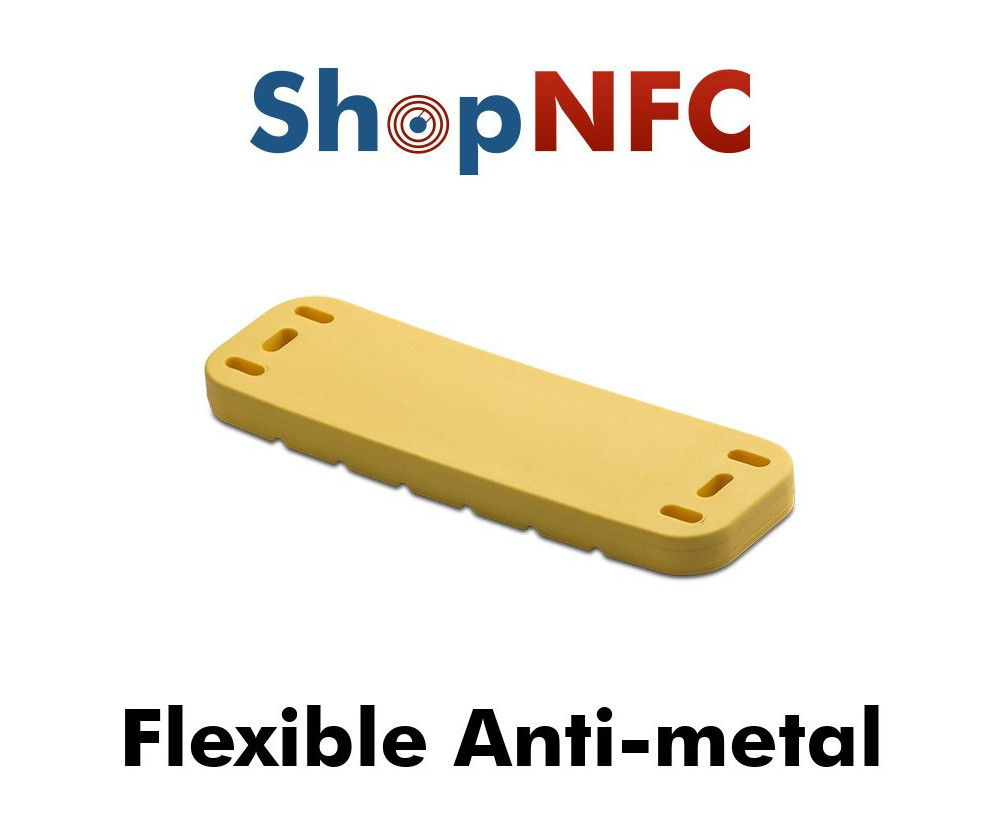

HID Industrial IP68 Flexible On-metal NFC Tags ICODE® SLIX2

2.49 €
As low as 1.46€/pz. for 4960 pieces . Learn more

Reference 629990-612

HID SlimFlex HF OM Slix2 - Flexible On-metal NFC tags for industrial environments and harsh conditions, resistant to sea water, mineral oils, temperature changes, vibrations and shocks.

Custom Printing
  • No
  • UV color printing

Quantity


In Stock

The minimum quantity order for this product is 10.

Do you need additional services? Click here

Did you find this product at a better price? Contact us

100% secure payments


Volume discounts

Quantity Discount Unit Price
50 9.64% 2.25 €
160 13.65% 2.15 €
480 17.67% 2.05 €
1280 23.29% 1.91 €
4960 41.36% 1.46 €

Do you need a larger quantity? Did you find this product at a better price? Contact us Order Number

Thanks to their TPU housing, these flexible NFC Tags are particularly suitable for use in industrial and/or marine environments, and easily applicable to round or irregular surfaces, such as cylindrical containers, plastic tubes, helmets, or trees too. They are resistant to mineral oils, seawater, temperature fluctuations, vibrations and shocks.

These NFC Tags can be fastened securely with cable ties, rivet, nails or screws.

The NXP ICODE® SLIX2 chip complies with the ISO 15693 Standard and is compatible with iPhone and Android smartphones. Password-protection is supported.

For custom graphics, or custom color, minimum order quantity is 20,000 pieces. If interested, please contact us.

Specifications

  • Material: TPU (thermoplastic polyurethane)
  • Dimensions: 83 x 25 x 6 mm
  • Fixation hole size: 6 x 2.5 mm
  • Operating temperature:-40 ~ 70 °C
  • Storage Temperature:-40 ~ 70 °C
  • Protection class: IP68
  • Weight: approx. 8.5 g

Chemical and mechanical resistance

  • Total resistance to water and dust (IP68)
  • Withstands Exposure To: mineral oil, petroleum, saline mist, vegetable oil, HCL (10%), bleach (5%); UV light
  • Vibration resistance: IEC 68.2.6 [10 g, 10 to 2000 Hz, 3 axes, 2.5 h]
  • Shock resistance: IEC 68.2.29 [40 g, 18 MS, 6 axes, 2000 times]
  • Axial/radial force resistance: 1000 N, 10 sec
  • Impact Resistance: IEC 62262-IK06 Fall Test: 100 Falls (1.8 m)
  • Bending radius: 150 mm

The TPU (thermoplastic polyurethane) is a material used used worldwide to manufacture automobile pipes and hoses: it is able to tolerate repeated bending or torsion, while maintaining excellent performance characteristics. The durable casing protects the embedded electronics even in difficult conditions.

Customization

The personalization can contain logos, progressive numbers, variable data and QR codes. Graphic customization is carried out by laser engraving or UV LED printing.

  • UV printing is full colour, fast and allows you to print even small quantities.
  • Laserisation is particularly durable and characterized by its silver color. Requires larger quantities and longer lead time.

629990-612
New

Data sheet

NFC Chip
NXP ICODE® SLIX2
NFC Standard
ISO/IEC 15693
NFC Forum
Type V
Universal Compatibility
Yes
UID (Unique ID)
8 bytes
Available memory
316 bytes
Communication rate
53 kbit/s
Read/Write endurance
100,000 cycles
Data retention
50 years
Password Protection
Supported
Works on metal
Yes
Waterproof level
Fully Waterproof
Protection class
IP68
Commodity code (HS)
85235200
Country of origin
Malaysia
Old Product Code
RE-ICO-SFS, 62999C-101
