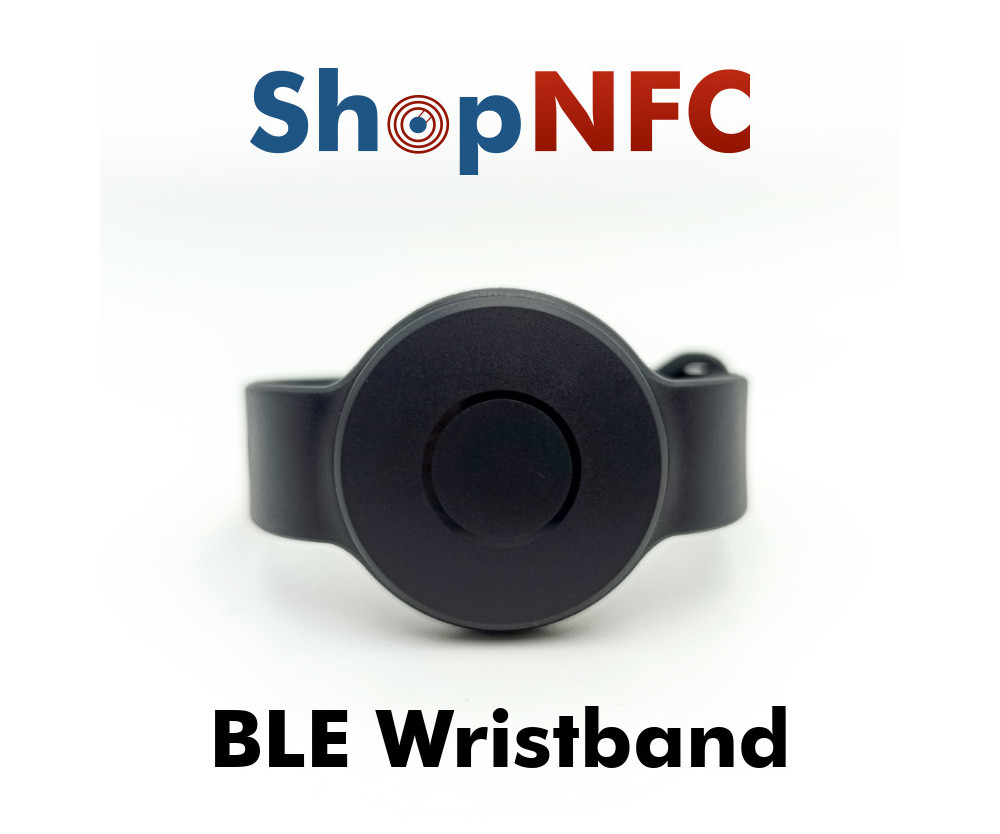

BLE Wristband / Keyfob - Bluetooth® Low Energy Beacon

Specifications and Features:

• Main Chip: Nordic nRF52810
• Bluetooth: Bluetooth 4.2 (hardware compatible with Bluetooth 5)
• Range: Up to 150 meters (open area with no obstacles)
• Dimensions: 48.9mm x 41.7mm x 12mm (main body)
• Antenna Type: PCB Onboard
• Material: ABS+PC & TPU
• Waterproof: IP67
• Color: Black
• Installation: Wrist wear, Keychain, Hang, Neck chain
• Button: Mechanical button
• LED: Single RED LED
• Sensor: 3-axis accelerometer sensor (optional), Mifare Classic 1k EV1
• Operating Temperature: -20°C to +60°C
• Storage Temperature:
  • Without battery: -20°C to +70°C
  • With battery: 10°C to +25°C
• Humidity: 0% to 95% (non-condensing)
• Power Supply: Replaceable CR2032 Lithium Coin Cell Battery (220mAh)
• Average Current: 15.6uA (default settings)
• Lifetime: 13 months (default settings)

Functions:

• Advertising Format:
  • Apple iBeacon, Google Eddystone (UID, URL, TLM)
  • MOKO BeaconX Pro sensor data (with 3-axis G-sensor)
• Multi-advertising: Supports up to 6 active slots (broadcasts different packets separately)
• Configurable List: Advertising format, data, beacon name, Tx power, advertising interval, connection password, trigger options, sensor parameters
• Proximity Promotion: Calculates distances through RSSI and pushes specified promotion info
• Sensor Sampling: Real-time broadcast or notification of 3-axis G-sensor data
• SOS Emergency: Button-triggered (2 or 3 clicks to change advertising status/data for emergency help)
• Firmware Update: Nordic DFU OTA/J-link
• Configuration App: Available for iOS and Android, scans advertising data, connects to configure parameters, open SDK for customers.
